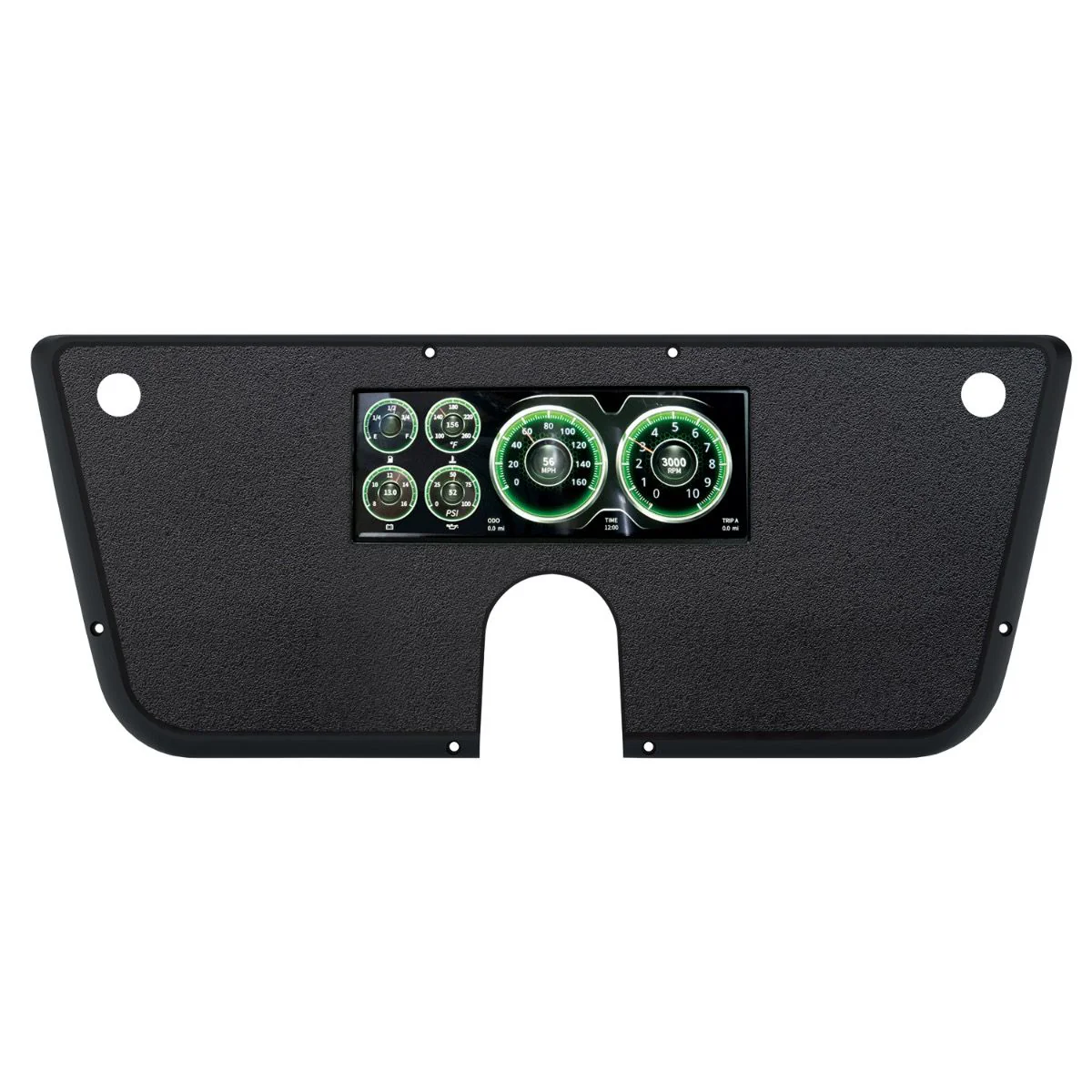

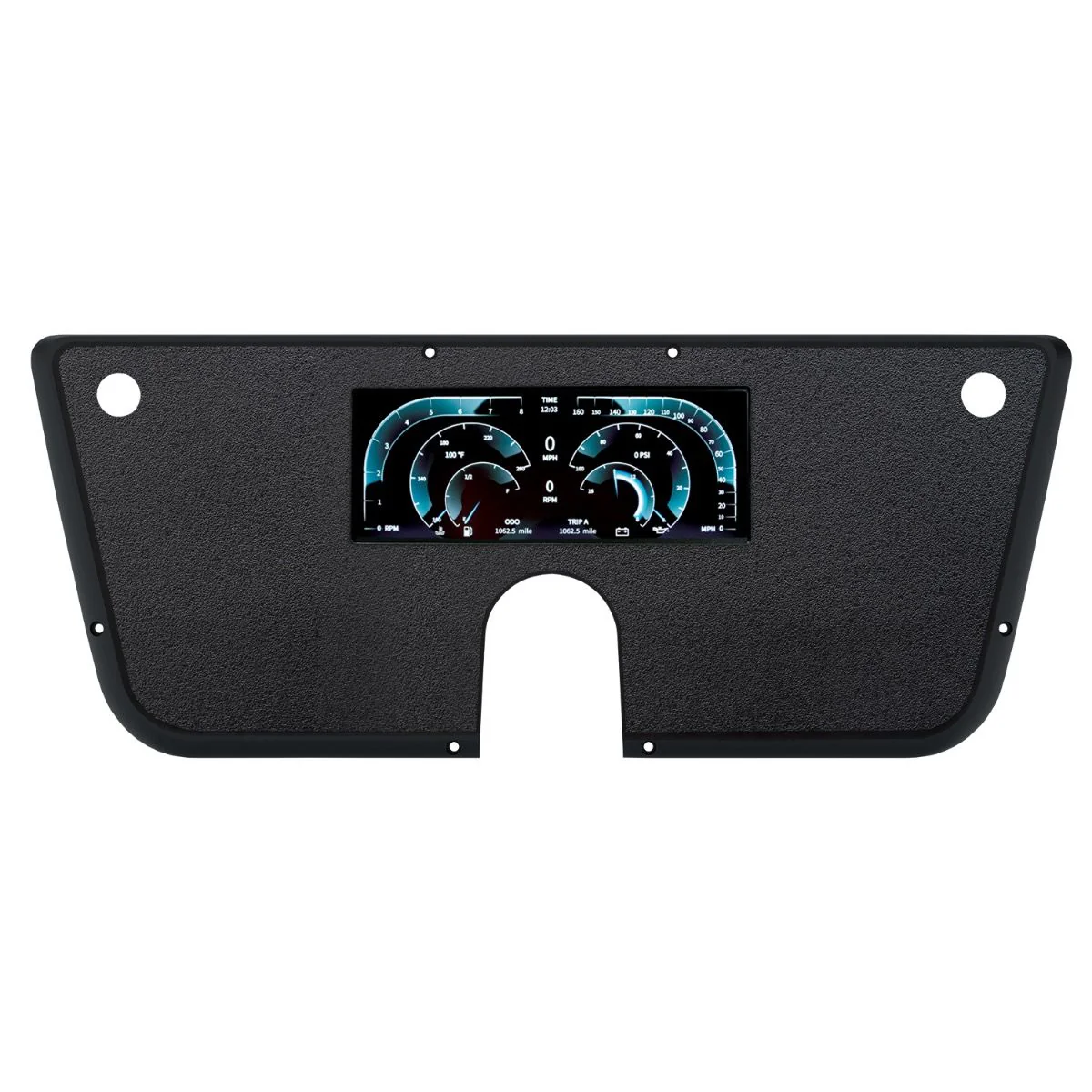

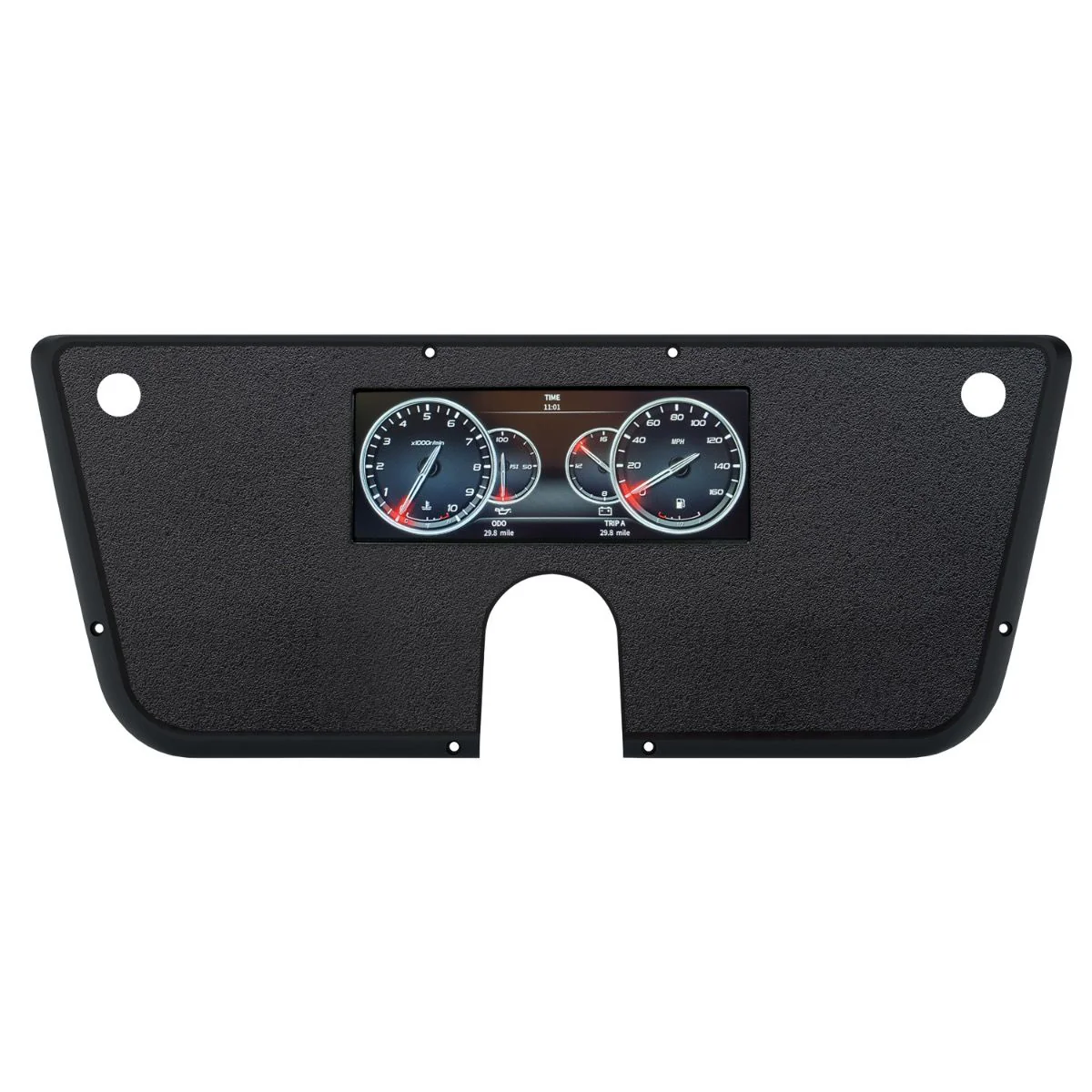

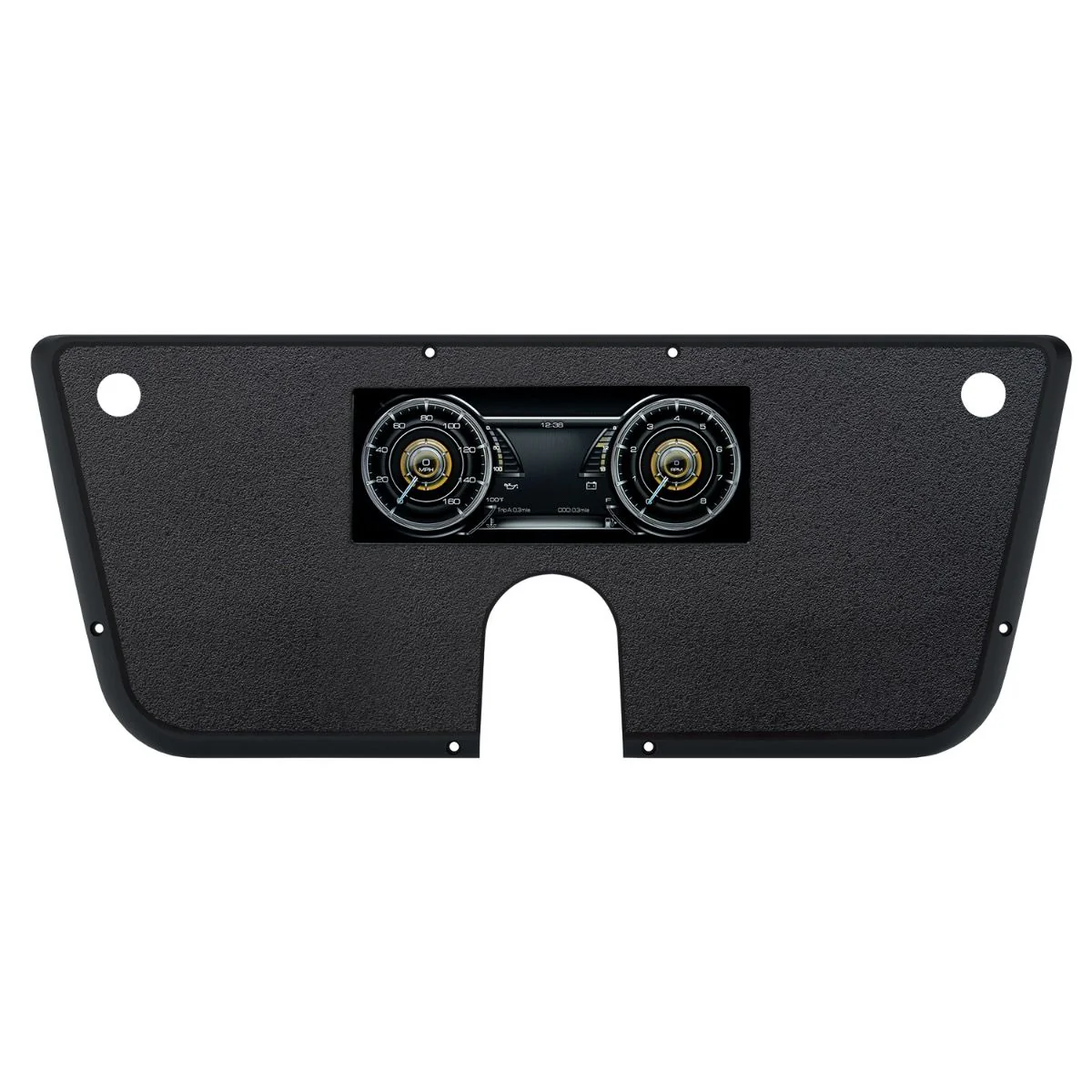

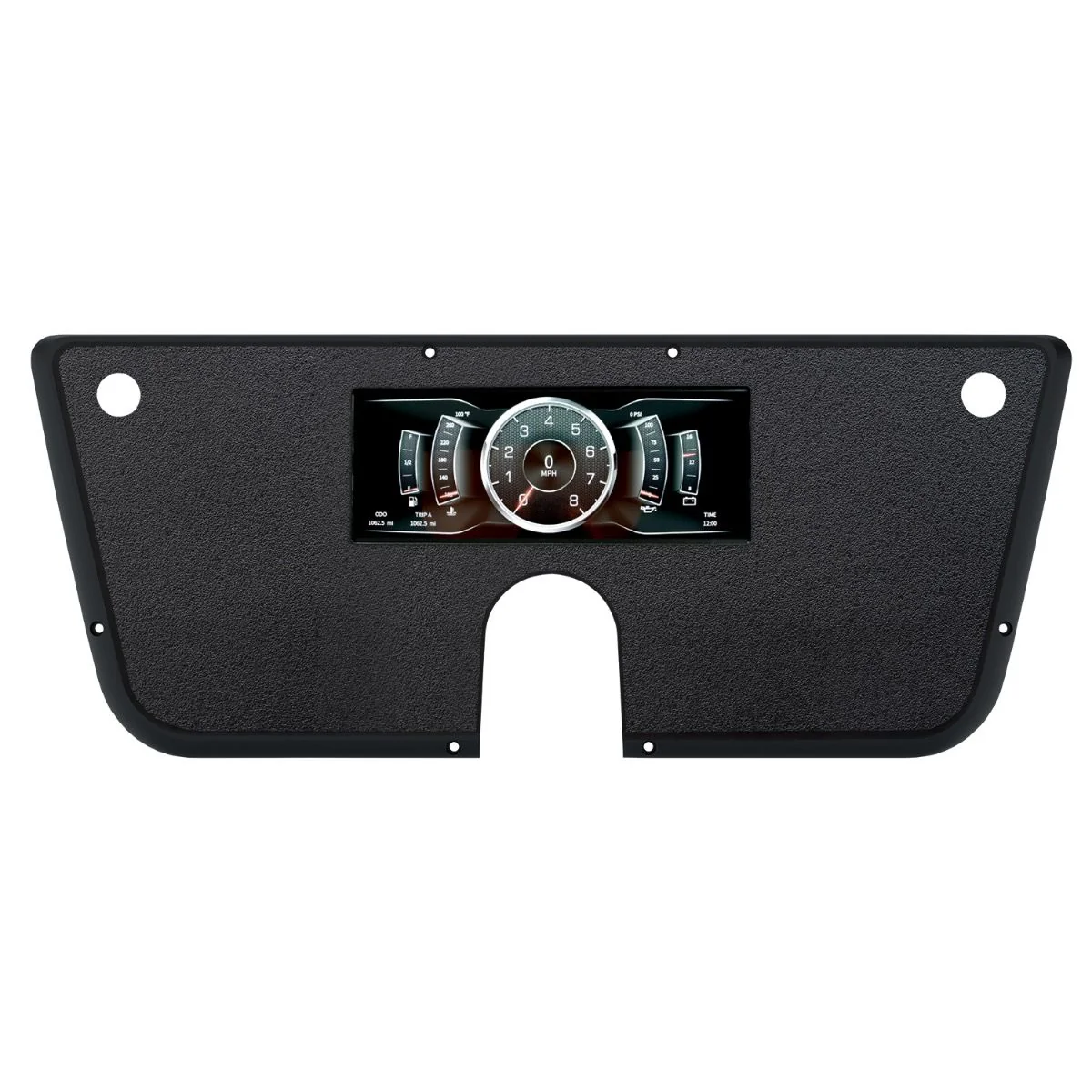

AutoMeter 7404 InVision 8.8 in. LCD Direct Fit Digital Dash 1967-72 Chevy Truck
AutoMeter designed their 7404 InVision Direct Fit Digital Dash as a complete digital instrument system engineered specifically for 1967–1972 Chevy Trucks. The high-resolution 8.8” LCD display comes mounted in an injection molded dash that replaces the factory cluster, presenting critical vehicle data in an easy to read clean modern format.
Designed as a true direct-fit upgrade, the InVision installs with no cutting or drilling and offers flexible calibration and display options to suit a wide range of drivetrains and build styles. Integrated indicators and alerts add confidence behind the wheel, delivering modern functionality while preserving the character of your classic truck!
The 8.8” LCD display features five user selectable screens and color changing options, and includes on-screen notifications for high beams and turn signals as well as visual and audible alarms for low fuel level/oil pressure/voltage and high water temperature.

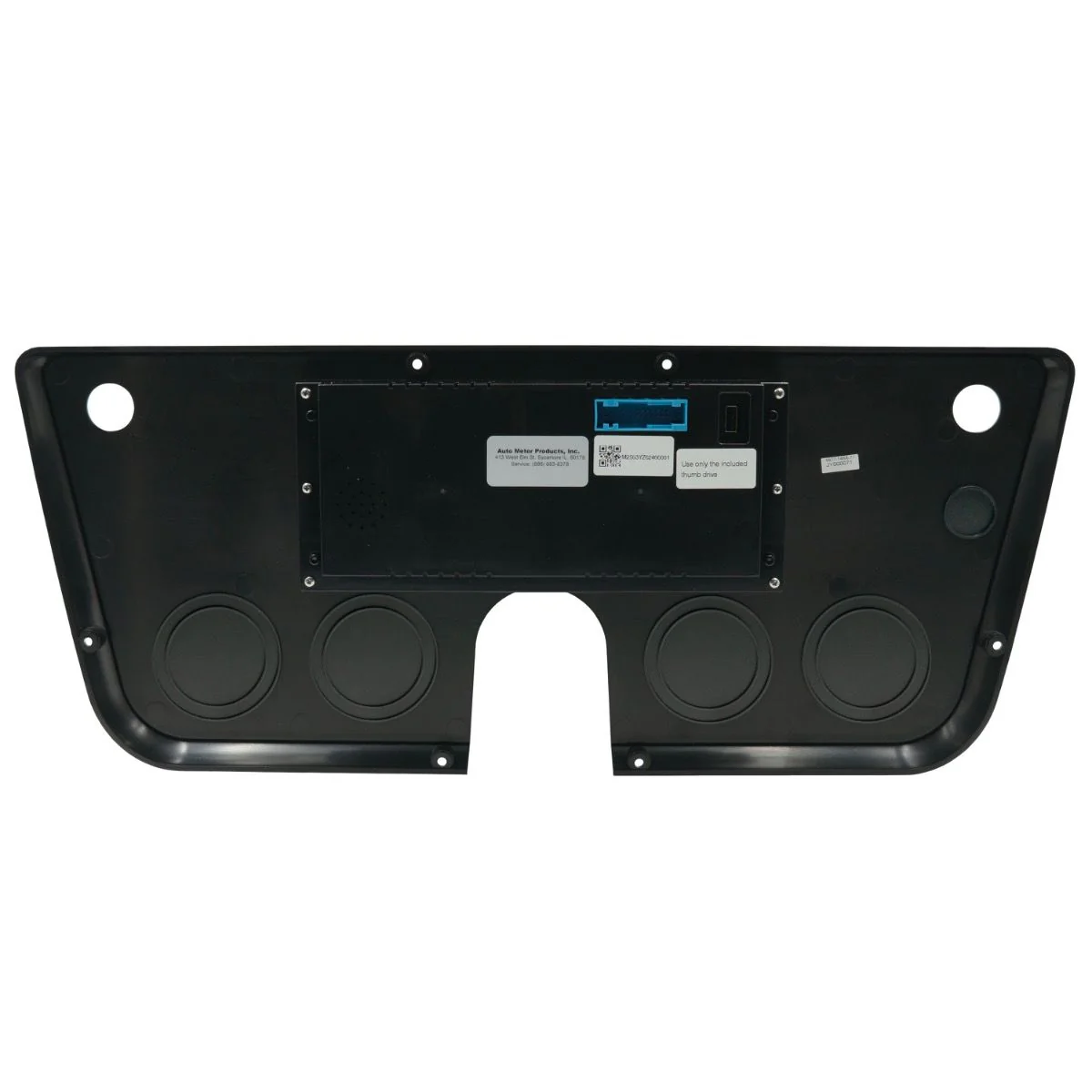

Monitor the speedometer, tachometer, fuel level, oil pressure, water temperature as well as volts all in a high resolution and colorful display. This kit also features integrated rear cutout guides for 4 additional 2-1/16" or 2-5/8" gauges and auxiliary switch installation.
The kit contains a wiring harness and sending units for water temperature and oil pressure as well as a joystick for dash customization. It displays output programmable for imperial as well as metric measurements, while the speedometer easily calibrates to OEM or aftermarket vehicle speed sensors.
The tachometer features an adjustable RPM range, and is capable of calibrating to many engine types (1-12 cylinders). Seven user-selectable fuel level resistance ranges are designed to pair with OEM and aftermarket sending units.
Includes a 2258 Sending Unit and 2242 Sensor. 3/8” NPT and 1/2" NPT adapter fittings and brackets are also included.
Upgrade your dash with the latest, modern LCD offering from AutoMeter!
AutoMeter 7404 InVision Direct Fit Digital Dash Features:
- Fits 1967-1972 Chevy Truck
- Screen Size Diagonal: 8.8 in.
- Speedometer Included: Yes
- Speedometer Range: 0-160 MPH
- Tachometer Included: Yes
- Tachometer Range: 0-8000 or 0-10000 RPM
- Water Temperature Gauge Included: Yes
- Water Temperature Range: 100-260 Degrees Fahrenheit
- Oil Pressure Gauge Included: Yes
- Oil Pressure Range: 0-100 PSI
- Fuel Level Gauge Included: Yes
- Voltage Gauge Included: Yes
- Voltage Range: 8-16 Volts
- Clock Included: Yes
- Boost Gauge Included: No
- Fuel Pressure Gauge Included: No
- Oil Temperature Gauge Included: No
- Water Pressure Gauge Included: No
- Transmission Temperature Gauge Included: No
- Gauge Panel Material: Plastic
- Gauge Panel Color: Black
- Illuminated: Yes
- Quantity: Sold as a kit
AutoMeter Products Inc. has been making performance racing instruments in Sycamore, IL since 1957. They focus on the OEM market such as GM, Ford, Toyota, and Chrysler, as well as smaller OEM companies and high-performance enthusiasts. The AutoMeter product line includes analog gauges, gauge mounting kits, digital gauges, shift/warning lights, gauge wiring harnesses, and more.
When you're serious about performance, trust AutoMeter gauges!
