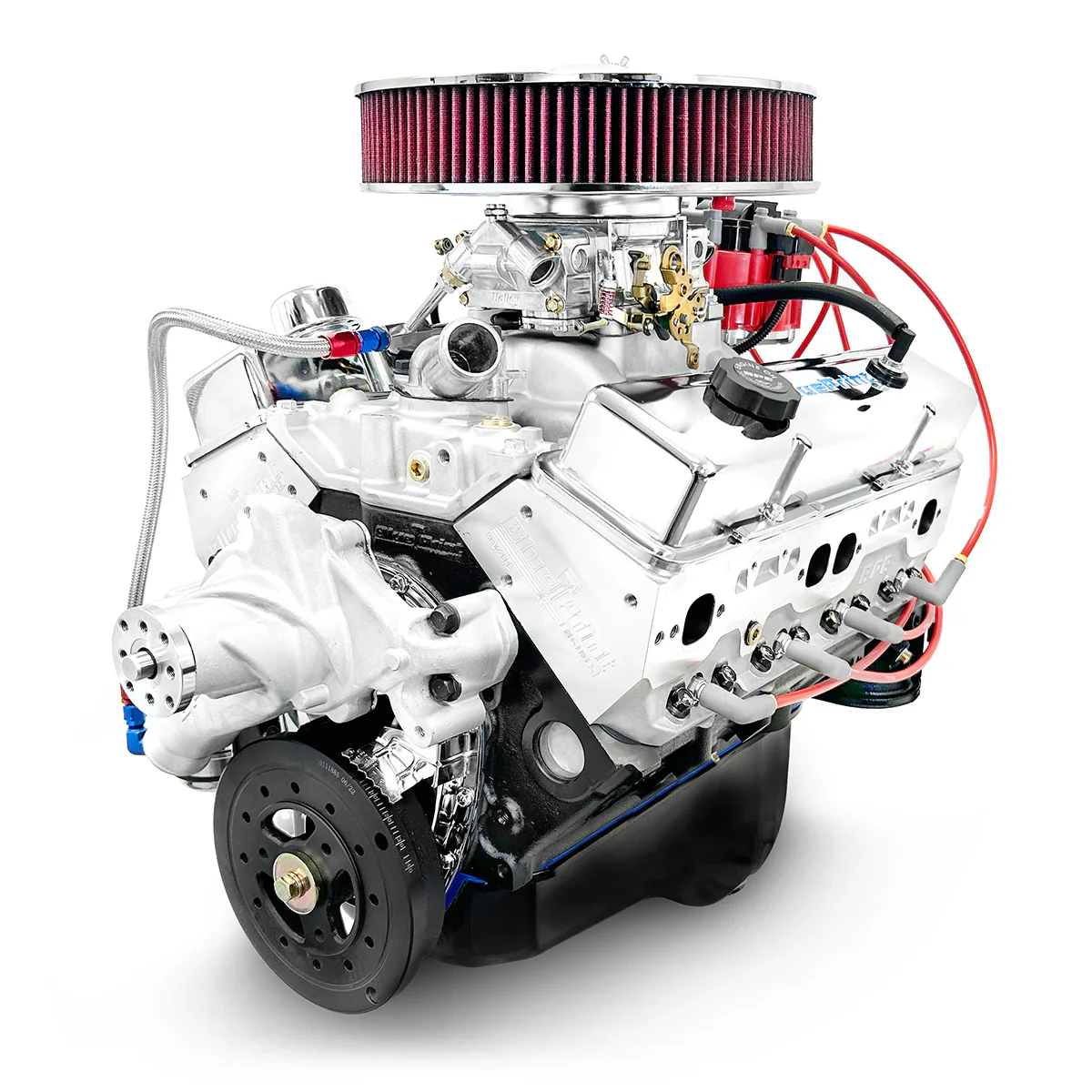

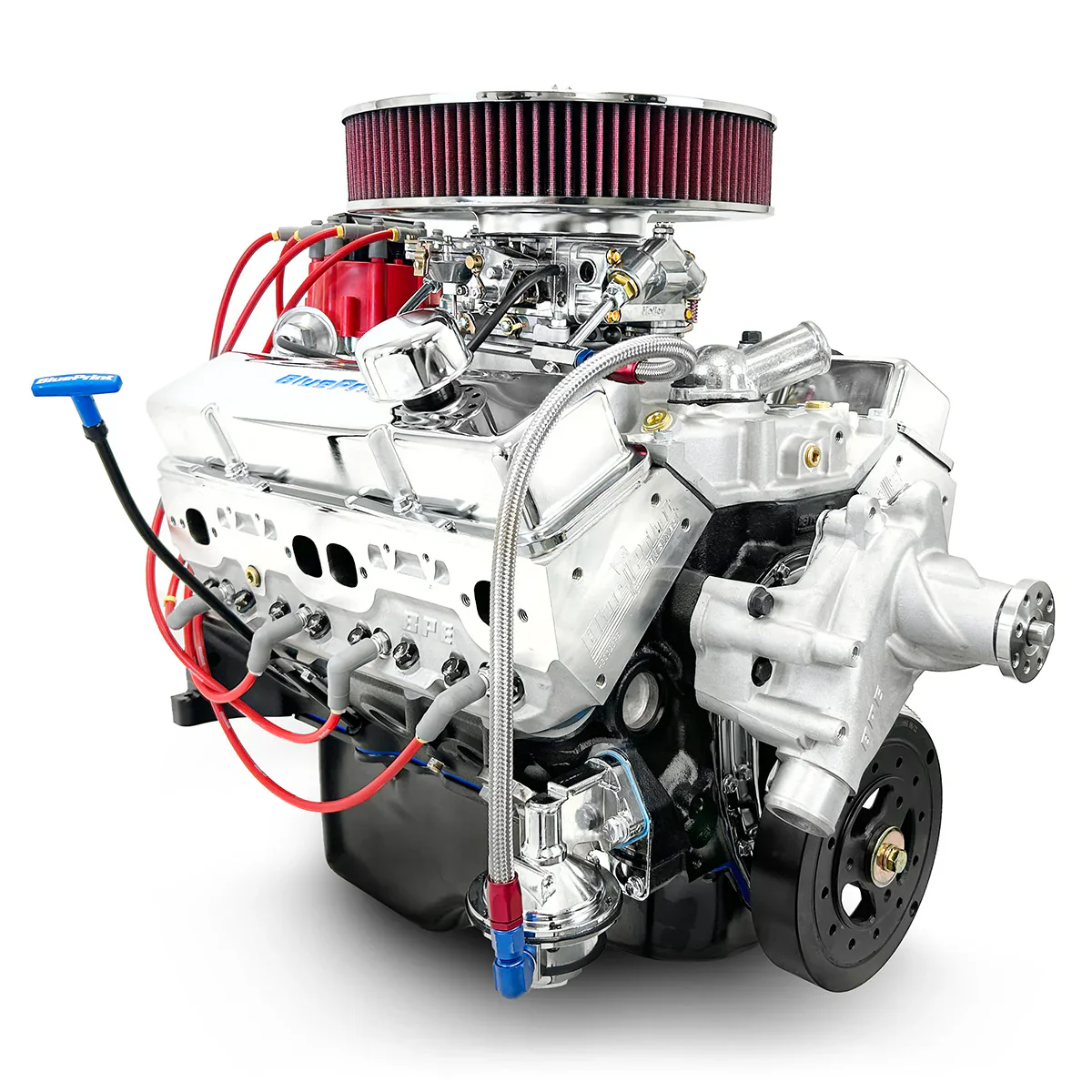

BluePrint Engines BP38318CTC1D GM 383 Stroker Small Block 436 HP Carbureted Deluxe
This BluePrint Engines BP38318CTC1D GM 383 Stroker Small Block Engine produces 436 horsepower and 443 ft./lbs. of torque. It comes with aluminum cylinder heads, a hydraulic roller camshaft as well as an aluminum intake. It also has Hypereutectic pistons as well as a cast crankshaft, and features a 10.0:1 compression ratio.
This engine also includes valve covers, long-style water pump, mechanical fuel pump, oil pan, timing cover, as well as an HEI distributor. Spark plugs and wires, harmonic balancer, mechanical fuel pump provision and a passenger side dipstick are also included.
In addition is a Holley Classic 750 cfm Vacuum Secondary Carburetor with a Manual Choke. BluePrint Engines recommends 91 octane gasoline as well as 32-34 degrees total ignition timing at 3500 RPM.
This engine comes with an industry-leading 30-Month/50,000 mile warranty!
Manufactured and Machined in the USA!
BluePrint Engines BP38318CTC1D GM 383 Stroker Small Block Engine Specs:
- Engine Family: Small Block Chevy
- Displacement: 383 CID
- Horsepower: 436
- Torque Ft./Lbs: 443
- Compression Ratio: 10.0:1
- Block Material: Cast Iron
- Bore: 4.000 in.
- Stroke: 3.75 in.
- Piston Type: Hypereutectic
- Cylinder Head Material: Aluminum
- Cylinder Head Chamber Volume: 64cc
- Intake Valve Size: 2.02 in.
- Exhaust Valve Size: 1.60 in.
- Intake Runner Size: 195cc
- Exhaust Runner Size: 75cc
- Crankshaft Material: Cast
- Engine Balance: External
- Rear Main Seal Type: 1-piece
- Camshaft Style: Hydraulic Roller
- Valve Lift Intake: .544
- Valve Lift Exhaust: .555
- Intake Duration at .050": 230
- Exhaust Duration at .050": 236
- Lobe Separation: 110
- Quantity: Sold individually
Notes: Cylinder heads feature a .500 raised port. In addition, it is the customer's responsibility to accurately measure and confirm fitment.
BluePrint Engines offers short blocks and long blocks, as well as turnkey engine assemblies in all of the popular GM, Ford, and Mopar configurations. They Dyno Test every engine, assuring an excellent choice for you as well as your customer.
