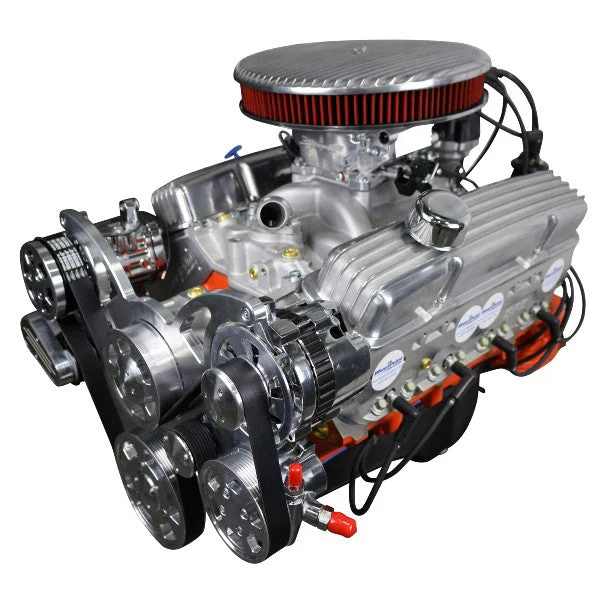

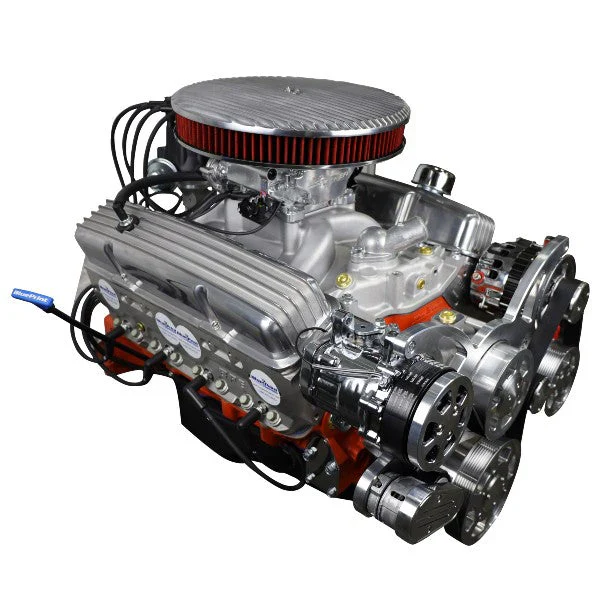

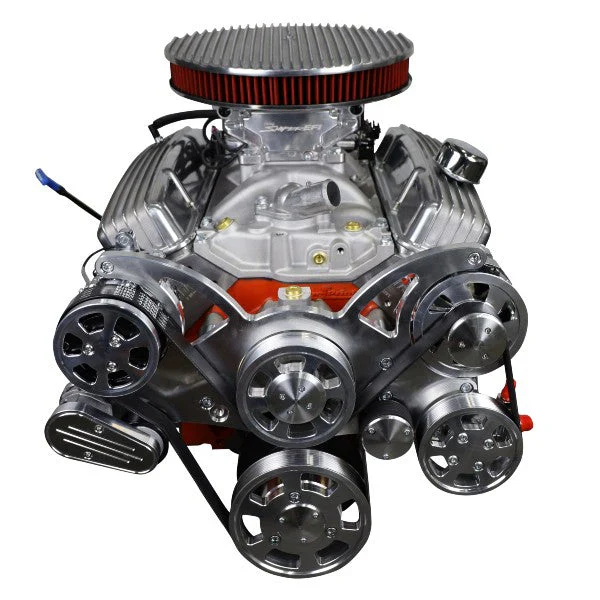

BluePrint Engines BP38318CTFKV GM 383 Stroker Small Block 436 HP Fuel Injected Polished Deluxe
BluePrint Engines BP38318CTFKV GM 383 Stroker Small Block 436 HP Fuel Injected Polished Deluxe
This BluePrint Engines BP38318CTFKV GM 383 Stroker Small Block Engine produces 436 horsepower and 443 ft./lbs. of torque. This engine is designed with a small diameter harmonic balancer, small cap distributor and dropbase air cleaner for vehicles with a low firewall or low hood clearance.
It comes with aluminum cylinder heads, a hydraulic roller camshaft as well a Holley Sniper 2 EFI System on an aluminum intake. It also has Hypereutectic pistons as well as a cast crankshaft, and features a 10.0:1 compression ratio.
This engine comes with a Polished Front Accessory Drive with a long style water pump, alternator, A/C compressor, and also a power steering pump.
This engine also includes a Premium Vintage Air Cleaner and Valve Covers, oil pan as well as a timing cover. Spark plugs and under header wires, thermostat and housing, mechanical fuel pump provision and a passenger side dipstick are also included.
BluePrint Engines recommends 91 octane gasoline as well as 32-34 degrees total ignition timing at 3500 RPM.
This engine comes with an industry-leading 30-Month/50,000 mile warranty!
Manufactured and also Machined in the USA!
BluePrint Engines BP38318CTFKV GM 383 Stroker Small Block Engine Specs:
- Engine Family: Small Block Chevy
- Displacement: 383 CID
- Horsepower: 436
- Torque Ft./Lbs: 443
- Compression Ratio: 10.0:1
- Block Material: Cast Iron
- Bore: 4.000 in.
- Stroke: 3.75 in.
- Piston Type: Hypereutectic
- Cylinder Head Material: Aluminum
- Cylinder Head Chamber Volume: 64cc
- Intake Valve Size: 2.02 in.
- Exhaust Valve Size: 1.60 in.
- Intake Runner Size: 195cc
- Exhaust Runner Size: 75cc
- Crankshaft Material: Cast
- Engine Balance: External
- Rear Main Seal Type: 1-piece
- Camshaft Style: Hydraulic Roller
- Valve Lift Intake: .544
- Valve Lift Exhaust: .555
- Intake Duration at .050": 230
- Exhaust Duration at .050": 236
- Lobe Separation: 110
- Quantity: Sold individually
Notes: Cylinder heads feature a .500 raised port. Front accessory drive does not fit Corvettes. In addition, it is the customer's responsibility to accurately measure and confirm fitment. Air Cleaner has an 11.5" maximum height when measured from block end rail.
BluePrint Engines offers short blocks and long blocks, as well as turnkey engine assemblies in all of the popular GM, Ford, and Mopar configurations. They Dyno Test every engine, assuring an excellent choice for you as well as your customer.
