BluePrint Engines BP38350CT1 GM 383 Stroker Small Block Long Block 1996-2000 Vortec Truck/SUV
BluePrint Engines BP38350CT1 GM 383 Stroker Small Block Long Block 1996-2000 Vortec Truck/SUV

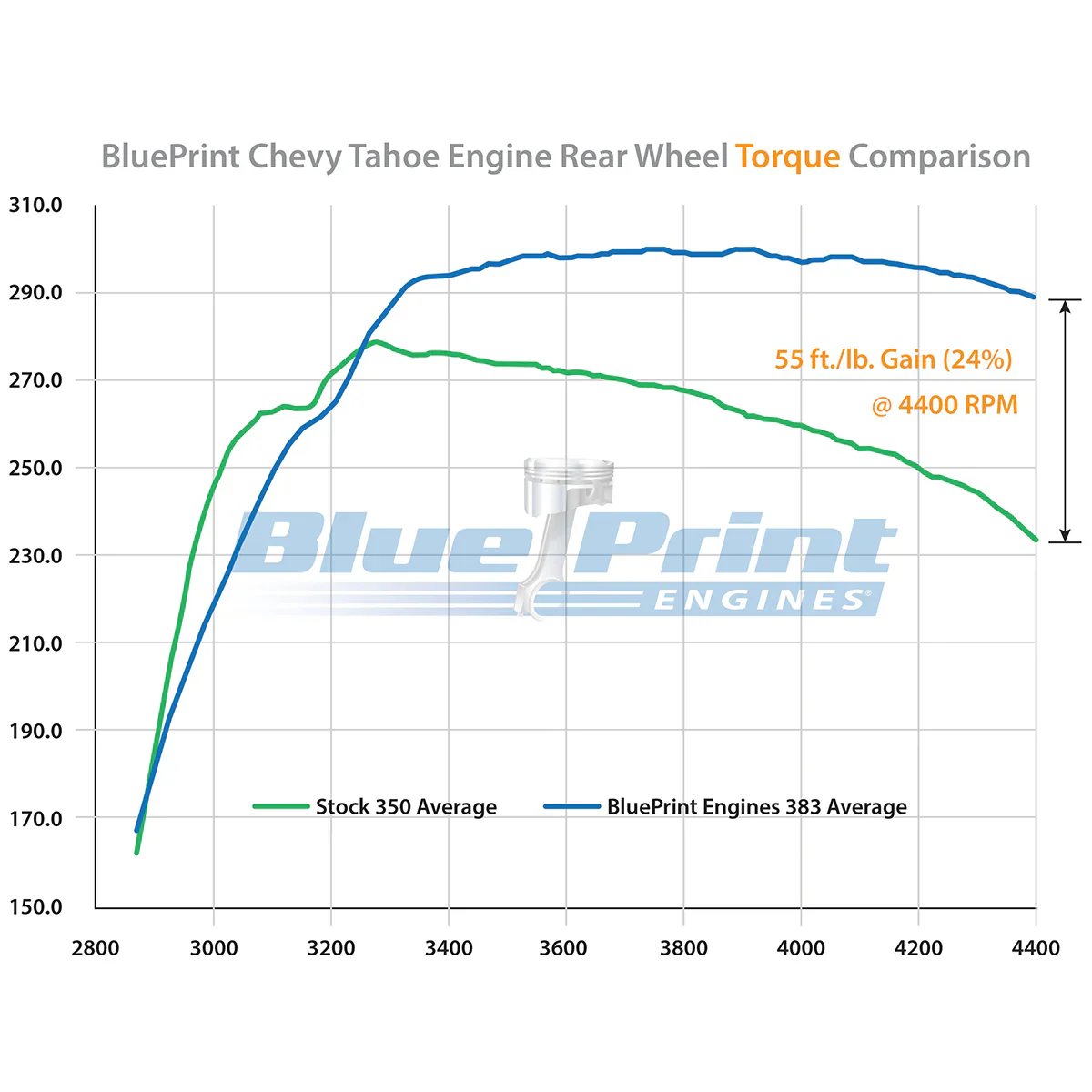

This BluePrint Engines BP38350CT1 GM Long Block Crate Engine 383 Stroker Small Block produces an increase of more than 47 Horsepower and 55 ft./lbs. of Torque to the rear wheels at 4400 RPM over a stock engine. It is designed for use in 1996-2000 Chevrolet Pickups or SUVs originally equipped with a Vortec 350 engine. No ECU tuning or recalibration is required, and it is also 49 state legal.
It comes with aluminum cylinder heads as well as a hydraulic roller camshaft. It also has Hypereutectic pistons as well as a cast crankshaft, and features a 10.0:1 compression ratio.
This 4-bolt main engine also includes valve covers, oil pan as well as a timing cover. A mechanical fuel pump provision and a passenger side dipstick are also included.
BluePrint Engines recommends 91 octane gasoline using the factory ECU ignition timing.
This engine comes with an industry-leading 30-Month/50,000 mile warranty!
Manufactured as well as Machined in the USA!
BluePrint Engines BP38350CT1 GM 383 Stroker Small Block Engine Specs:
- Engine Family: Small Block Chevy
- Displacement: 383 CID
- Horsepower: +47 Rear Wheel Increase over Factory
- Torque Ft./Lbs: +55 Rear Wheel ft./lbs. Torque Increase over Factory
- Compression Ratio: 10.0:1
- Block Material: Cast Iron
- Bore: 4.000 in.
- Stroke: 3.75 in.
- Connecting Rods: 5.700" with 150,000 PSI Bolts
- Piston Type: Hypereutectic
- Cylinder Head Material: Aluminum
- Cylinder Head Chamber Volume: 64cc
- Intake Valve Size: 2.02 in.
- Exhaust Valve Size: 1.60 in.
- Intake Runner Size: 195cc
- Exhaust Runner Size: 75cc
- Crankshaft Material: Cast
- Engine Balance: External
- Rear Main Seal Type: 1-piece
- Camshaft Style: Hydraulic Roller
- Valve Lift Intake: .477
- Valve Lift Exhaust: .471
- Intake Duration at .050": 202
- Exhaust Duration at .050": 212
- Lobe Separation: 115
- CARB EO: D-824-1
- Quantity: Sold individually
Notes: Requires Late-Style 350 weighted Flexplate/Flywheel. May require modification to existing front accessory drive mounting brackets if retaining OEM front accessory drive.
BluePrint Engines offers short blocks and long blocks, as well as turnkey engine assemblies in all of the popular GM, Ford, and Mopar configurations. They Dyno Test every engine, assuring an excellent choice for you as well as your customer.
