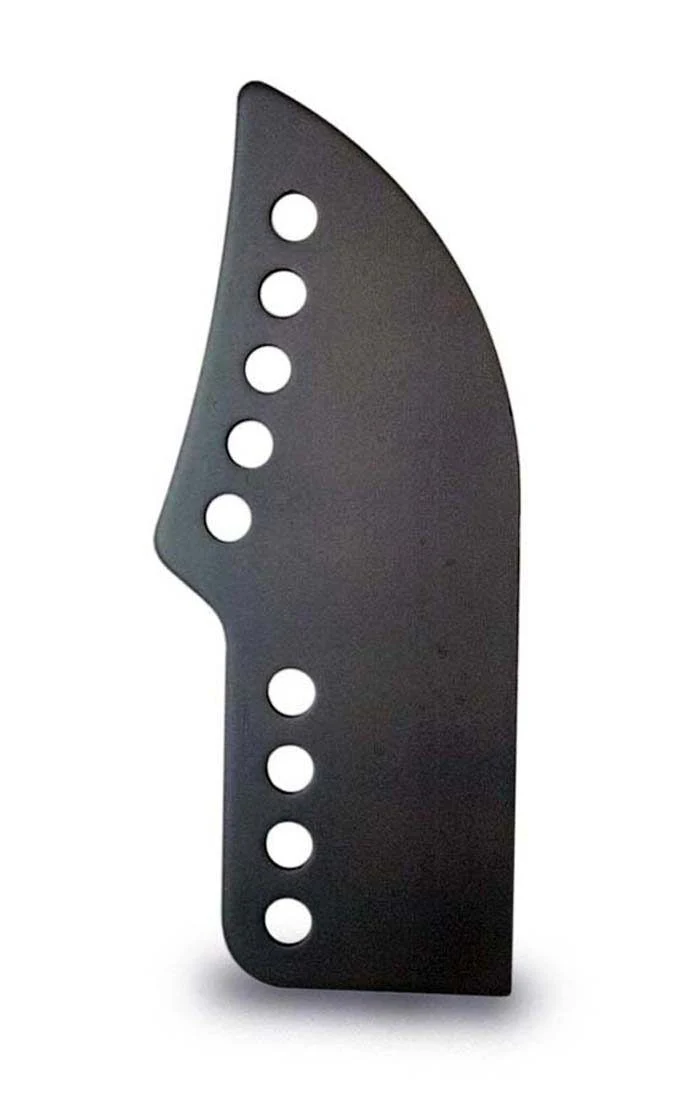

Competition Engineering C3421 Magnum Series 4-Link Chassis Bracket

Competition Engineering designed this C3421 Magnum Series 4-Link Chassis Bracket as a replacement for the universal square-end brackets found in their Magnum Series 4-Link. The radiused profile simplifies welding and saves hours of fabrication time, and mates up perfectly with their 4-Link Frame Rails. The rugged 1/4" thick steel construction eliminates bending in ultra high horsepower cars.

The entire profile, including the nine mounting holes, is stamped from hot rolled steel in one operation to eliminate distortion and to ensure exact dimensions.

The mounting holes provide a wide range of chassis adjustments; they accept 5/8" hole, 3/4" shank rod ends.

Competition Engineering C3421 Magnum Series 4-Link Chassis Bracket Features:

• Mounting Style: Weld-On
• Link Mounting Hole Diameter: 5/8 in.
• Link Mounting Hole Quantity: 9
• Link Hole Center to Center Spacing: 1 in.
• Width: 4-13/16 in.
• Height: 11-13/16 in.
• Thickness: 1/4 in.
• Material: Steel
• Color: Natural
• Quantity: Sold individually

Note: Four brackets required per car.

Competition Engineering specializes in chassis components, supplying everything from steering and suspension in addition to ladders and rear frame kits. They have the parts to help simplify as well as speed up building your race car.
