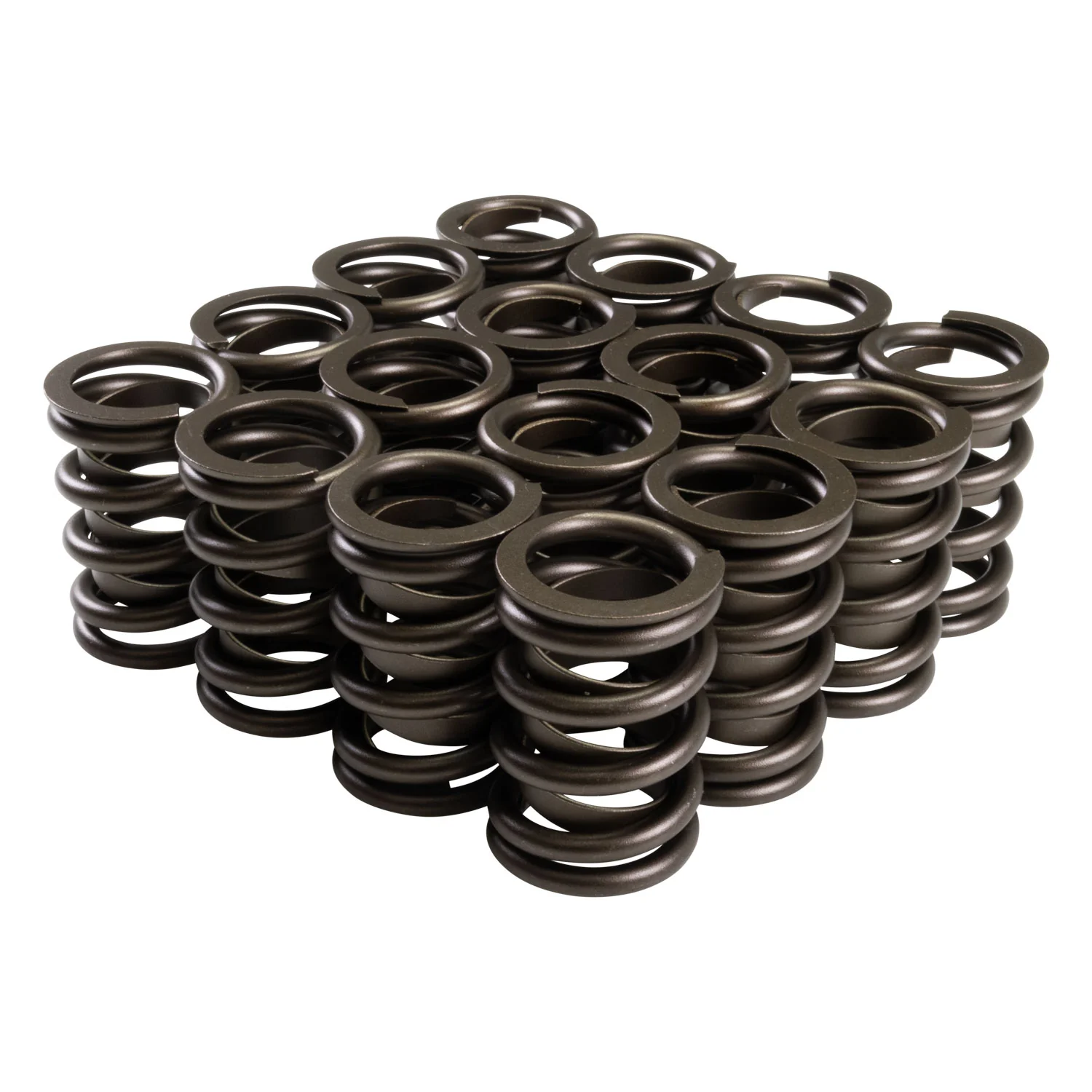

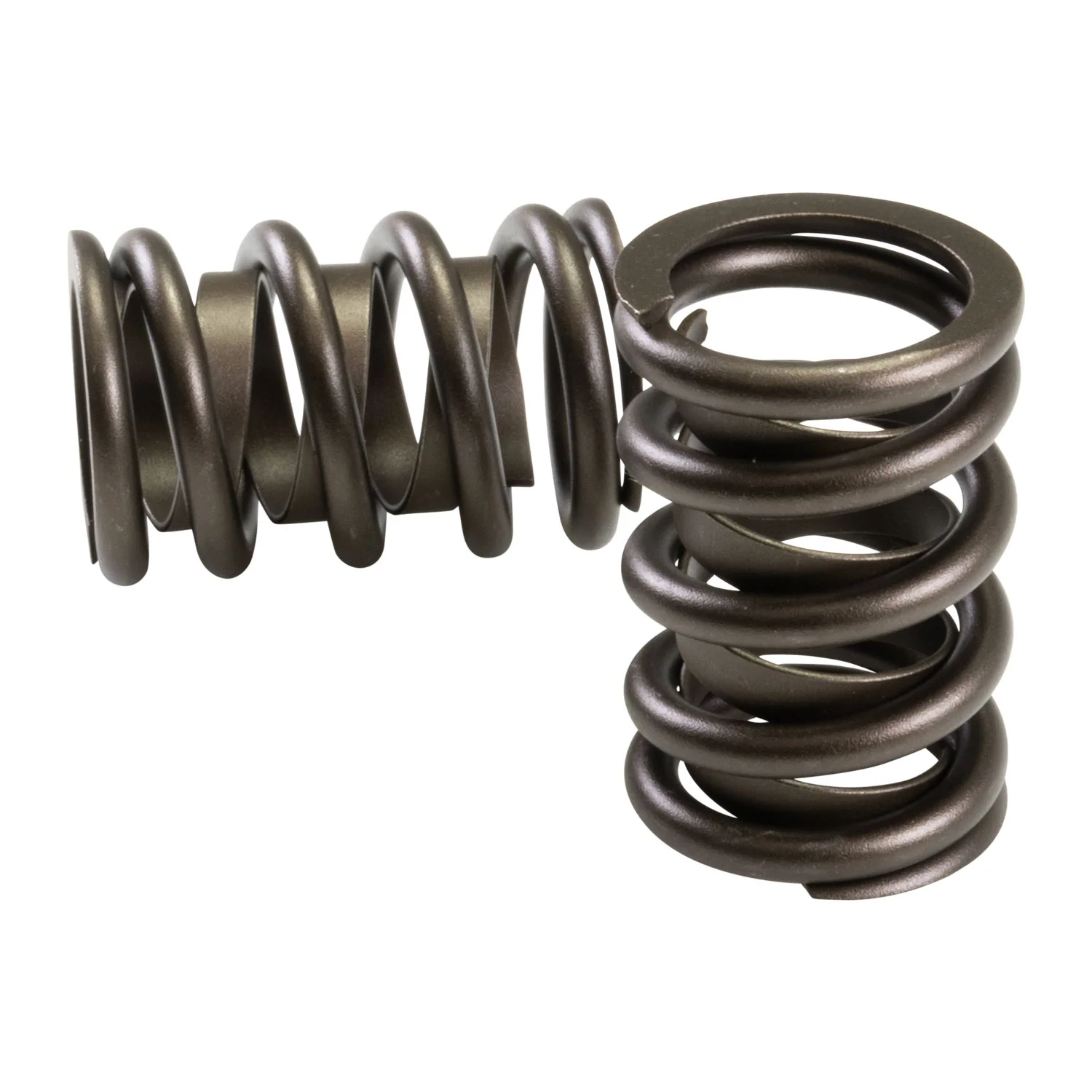

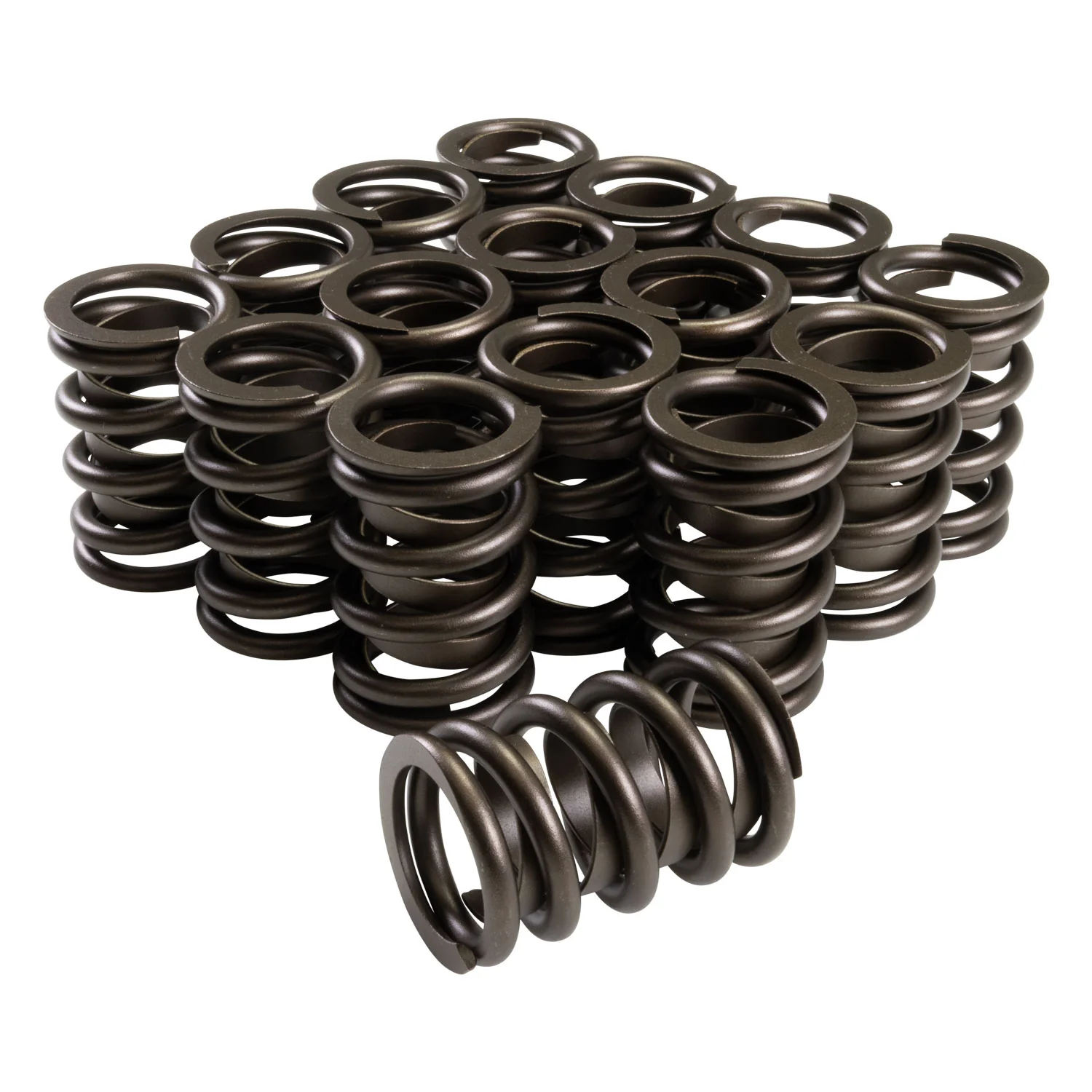

Comp Cams 26911-16 Single Outer Valve Springs

Comp Cams designed these 26911-16 Valve Springs as an excellent choice for many flat tappet and hydraulic roller cams. They are designed to operate around a 1.850" installed height and can run .550" lift while still being under 350 lbs. open load for flat tappet applications, or run .650" lift for hydraulic rollers with over 380 lbs. of open load!

Comp Cams 26911-16 Valve Springs Specs:

• Number of Springs Per Valve: Single
• Valve Spring Style: Single Outer
• Maximum Valve Lift: 0.650 in.
• Installed Height: 1.850 in.
• Coil Bind Height: 1.140 in.
• Outside Diameter of Outer Spring: 1.486 in.
• Inner Diameter of Outer Spring: 1.062 in.
• Middle Spring ID: N/A
• Inner Spring ID: N/A
• Spring Rate: 410 lbs./in.
• Load at Installed Height: 120 lbs.
• Load at Open Height: 387 lbs.
• Open Height: 1.200 in.
• Damper Spring Included: Yes
• Retainers Included: No
• Valve Springs Coated: No
• Valve Stem Seals Included: No
• Locks Included: No
• Quantity: Sold as a set of 16

Comp Cams –The Absolute Leader In Valve Train Technology!
