Comp Cams 26926TS-KIT Valve Spring Kit for GM LS 1.320 in.

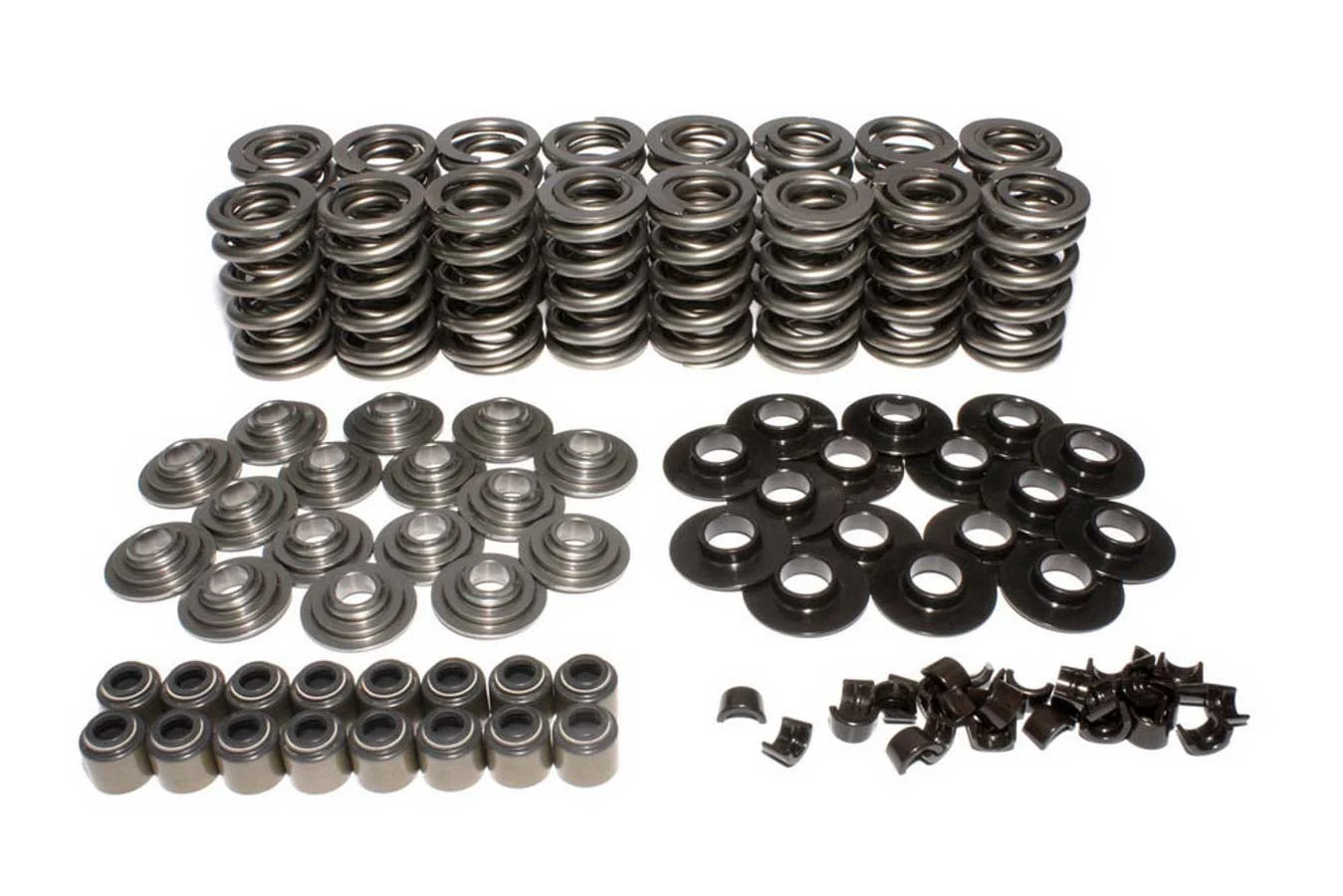

Comp Cams designed this 26926TS-KIT Valve Spring Kit for GM LS engines. This kit includes carefully matched dual valve springs, tool steel retainers, locks, seals as well as spring seats. With a .675" maximum lift, the springs work great for high performance street in addition to drag strip applications. Ideal for steet and strip hydraulic rolller cams, some solid roller cams as well as some solid flat tappet race applications.
These springs are manufactured from Super Clean wire and are subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability as well as valve train stability. As a result, the dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications.
Comp Cams Dual Valve Spring design exceeds the expectations of today's engine builders as well as racers.
Comp Cams 26926TS-KIT Valve Springs Specs:
- Number of Springs Per Valve: Dual
- Valve Spring Style: Standard
- Maximum Valve Lift: 0.675 in.
- Installed Height: 1.835 in.
- Coil Bind Height: 1.100 in.
- Outside Diameter of Outer Spring: 1.320 in.
- Inner Diameter of Outer Spring: 0.920 in.
- Inner Spring ID: 0.654 in.
- Spring Rate: 505 lbs./in.
- Seat Pressure: 129 lbs.
- Damper Spring Included: No
- Retainers Included: Yes
- Retainer Material: Tool Steel
- Valve Springs Coated: No
- Valve Stem Seals Included: Yes
- Locks Included: Yes
- Lock Material: Hardened Steel
- Lock Groove Quantity: 1-groove
- Lock Style: 7 degree
- Valve Stem Diameter: 0.315 in.
- Quantity: Sold as a kit
Comp Cams –The Absolute Leader In Valve Train Technology without reservation!
Original: $686.95
-65%$686.95
$240.43More Images
Comp Cams 26926TS-KIT Valve Spring Kit for GM LS 1.320 in.
Comp Cams designed this 26926TS-KIT Valve Spring Kit for GM LS engines. This kit includes carefully matched dual valve springs, tool steel retainers, locks, seals as well as spring seats. With a .675" maximum lift, the springs work great for high performance street in addition to drag strip applications. Ideal for steet and strip hydraulic rolller cams, some solid roller cams as well as some solid flat tappet race applications.
These springs are manufactured from Super Clean wire and are subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability as well as valve train stability. As a result, the dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications.
Comp Cams Dual Valve Spring design exceeds the expectations of today's engine builders as well as racers.
Comp Cams 26926TS-KIT Valve Springs Specs:
- Number of Springs Per Valve: Dual
- Valve Spring Style: Standard
- Maximum Valve Lift: 0.675 in.
- Installed Height: 1.835 in.
- Coil Bind Height: 1.100 in.
- Outside Diameter of Outer Spring: 1.320 in.
- Inner Diameter of Outer Spring: 0.920 in.
- Inner Spring ID: 0.654 in.
- Spring Rate: 505 lbs./in.
- Seat Pressure: 129 lbs.
- Damper Spring Included: No
- Retainers Included: Yes
- Retainer Material: Tool Steel
- Valve Springs Coated: No
- Valve Stem Seals Included: Yes
- Locks Included: Yes
- Lock Material: Hardened Steel
- Lock Groove Quantity: 1-groove
- Lock Style: 7 degree
- Valve Stem Diameter: 0.315 in.
- Quantity: Sold as a kit
Comp Cams –The Absolute Leader In Valve Train Technology without reservation!
