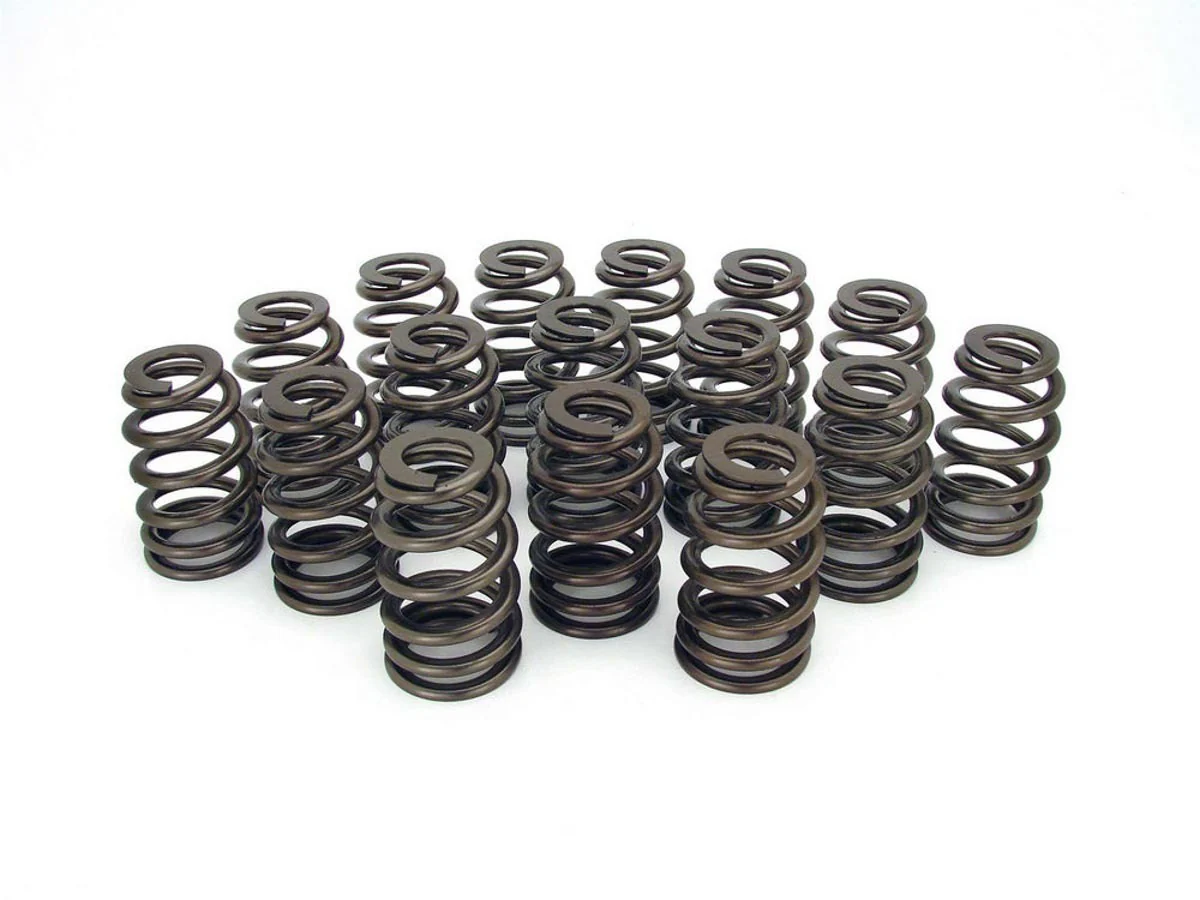

Comp Cams 26986-16 Beehive Valve Springs
Comp Cams designed these 26986-16 Valve Springs for hydraulic or solid flat tappet as well as hydraulic roller cams. They work in a variety of small block engines and with a .580" maximum lift, they work great for high performance street, oval track as well as endurance applications.
The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics as well as increasing high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently as well as allowing better heat dissipation for longer life.
Because of this unique Beehive design, the valve train can handle more RPM as well as more aggressive cam profiles. They deliver increased valve train stability as well as a much lighter valve train by using less spring pressure for better valve control and reduced weight of both the spring and retainer.
Comp Cams 26986-16 Valve Springs Specs:
- Number of Springs Per Valve: Single
- Valve Spring Style: Beehive
- Maximum Valve Lift: 0.580 in.
- Installed Height: 1.700 in.
- Coil Bind Height: 1.060 in.
- Outside Diameter of Outer Spring: 1.065/1.415 in.
- Inner Diameter of Outer Spring: 0.650/1.000 in.
- Middle Spring ID: N/A
- Inner Spring ID: N/A
- Spring Rate: 280 lbs./in.
- Seat Pressure: 137 lbs.
- Damper Spring Included: No
- Retainers Included: No
- Valve Springs Coated: No
- Valve Stem Seals Included: No
- Locks Included: No
- Quantity: Sold as a set of 16
Comp Cams –The Absolute Leader In Valve Train Technology!
Original: $270.95
-65%$270.95
$94.83Comp Cams 26986-16 Beehive Valve Springs
Comp Cams designed these 26986-16 Valve Springs for hydraulic or solid flat tappet as well as hydraulic roller cams. They work in a variety of small block engines and with a .580" maximum lift, they work great for high performance street, oval track as well as endurance applications.
The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics as well as increasing high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently as well as allowing better heat dissipation for longer life.
Because of this unique Beehive design, the valve train can handle more RPM as well as more aggressive cam profiles. They deliver increased valve train stability as well as a much lighter valve train by using less spring pressure for better valve control and reduced weight of both the spring and retainer.
Comp Cams 26986-16 Valve Springs Specs:
- Number of Springs Per Valve: Single
- Valve Spring Style: Beehive
- Maximum Valve Lift: 0.580 in.
- Installed Height: 1.700 in.
- Coil Bind Height: 1.060 in.
- Outside Diameter of Outer Spring: 1.065/1.415 in.
- Inner Diameter of Outer Spring: 0.650/1.000 in.
- Middle Spring ID: N/A
- Inner Spring ID: N/A
- Spring Rate: 280 lbs./in.
- Seat Pressure: 137 lbs.
- Damper Spring Included: No
- Retainers Included: No
- Valve Springs Coated: No
- Valve Stem Seals Included: No
- Locks Included: No
- Quantity: Sold as a set of 16
Comp Cams –The Absolute Leader In Valve Train Technology!
