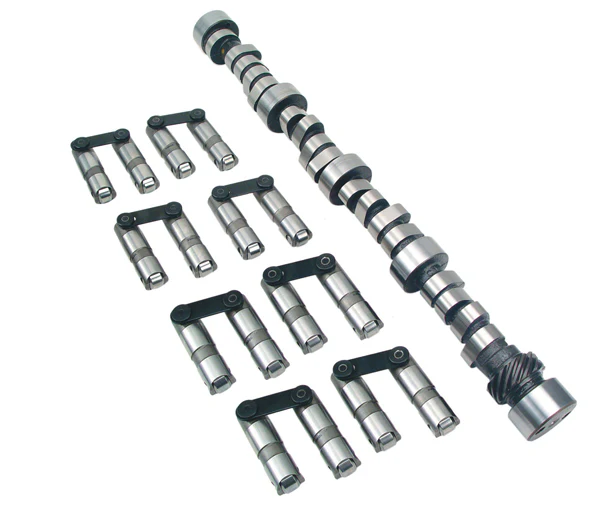

Comp Cams CL11-693-8 BBC Magnum Solid Roller Camshaft and Lifter Kit
This Comp Cams CL11-693-8 BBC Magnum Solid Roller Camshaft and Lifter Kit fits the 396-454 Big Block Chevy from 1967-1996. Comp designed this cam for pro street/strip use, and it features a radical idle. A 10.5:1 or higher compression ratio, 4.10 rear gear and a 3500+ stall speed torque converter are highly recommended.
Comp Cams CL11-693-8 BBC Magnum Solid Roller Camshaft & Lifter Kit Specs:
- For 396-454 cubic inch Big Block Chevy engines from 1967-1996
- Includes Camshaft 11-693-8 and Lifter Set 819-16
- Requires thrust button and wear plate
- Must use bronze tip fuel pump pushrod when using high pressure or high-volume pump
- Basic RPM Range: 3000 to 7200
- Valve Lift Intake: .652
- Valve Lift Exhaust: .652
- Advertised Intake Duration: 308
- Advertised Exhaust Duration: 308
- Intake Duration at .050”: 264
- Exhaust Duration at .050”: 264
- Lobe Separation: 110
- Firing Order: 1-8-4-3-6-5-7-2
- Made in the USA
Notes: Stock (O.E.) valve springs can NOT be used. Offset lifters are available.
Comp Cams designed this solid roller camshaft and lifter kit for high performance on the street and drag strip.
Comp Cams –The Absolute Leader In Valve Train Technology!
