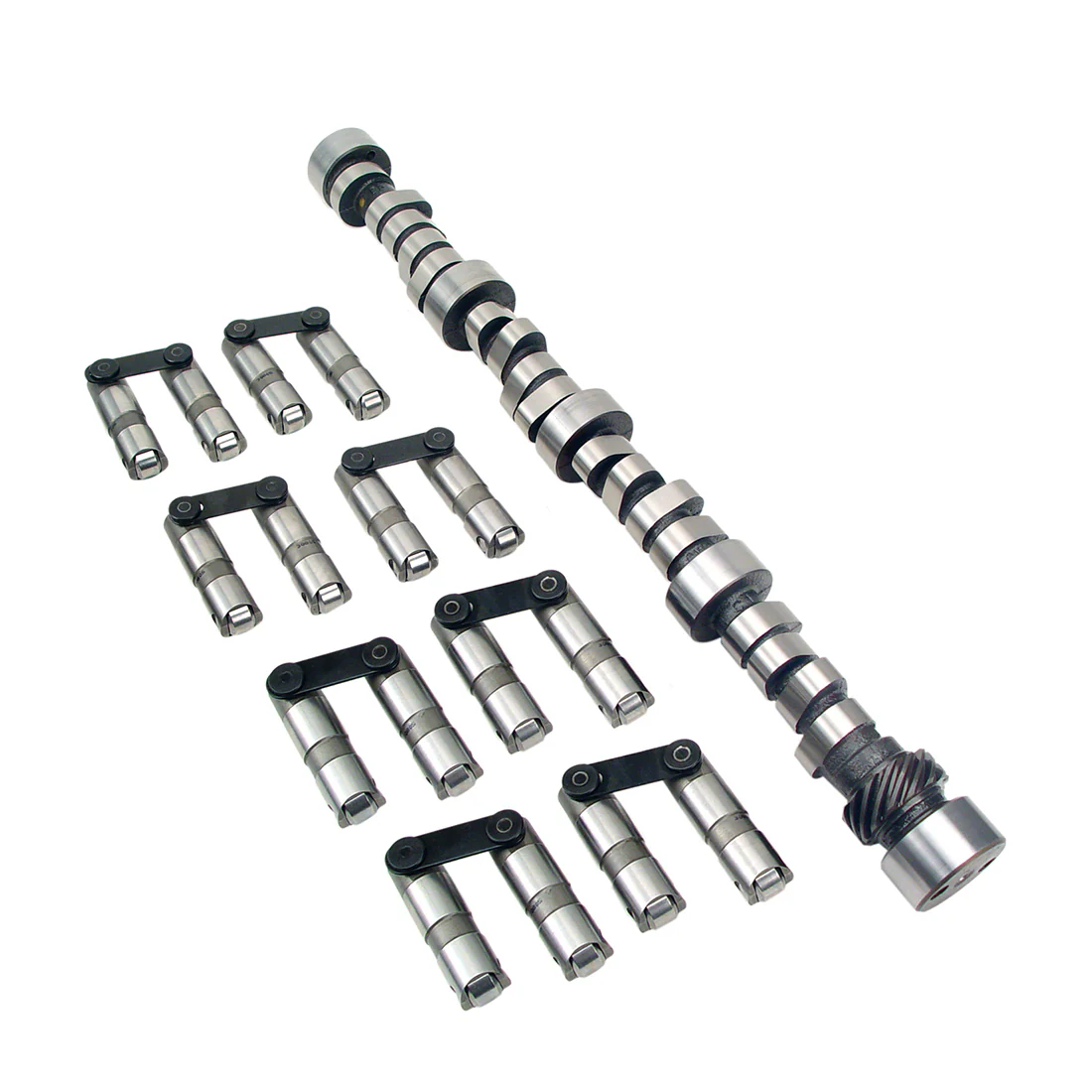

Comp Cams CL12-470-8 SBC Magnum Retro-Fit Hydraulic Roller Camshaft and Lifter Kit

This Comp Cams CL12-470-8 SBC Magnum Retro-Fit Hydraulic Roller Camshaft & Lifter Kit fits the 262-400 Small Block Chevy from 1958-1998. Comp designed this cam for limited street and bracket racing use, and it features a radical idle. A 10.5:1+ compression ratio, race intake, headers, 4.10 gears and a 3700+ stall speed torque converter are highly recommended.

Comp Cams CL12-470-8 SBC Magnum Retro-Fit Hydraulic Roller Camshaft & Lifter Kit Specs:

• For 262-400 cubic inch Small Block Chevy engines from 1958-1998
• Includes Camshaft 12-470-8 and Lifter Set 853-16
• Requires thrust button in addition to a wear plate
• Must use bronze tip fuel pump pushrod when using high pressure or high-volume pump
• Stock (O.E.) valve springs can NOT be used.
• Basic RPM Range: 3500 to 6500
• Valve Lift Intake: .600
• Valve Lift Exhaust: .600
• Advertised Intake Duration: 314
• Advertised Exhaust Duration: 314
• Intake Duration at .050”: 252
• Exhaust Duration at .050”: 252
• Lobe Separation: 110
• Firing Order: 1-8-4-3-6-5-7-2
• Made in the USA

Comp Cams designed this Retro-Fit Hydraulic Roller camshaft for high performance on the street as well as the drag strip.

Comp Cams –The Absolute Leader In Valve Train Technology!
