Edelbrock 30700 EZ-Street EFI System
Edelbrock designed their 30700 EZ-Street EFI System as a self-tuning 4150 style Throttle Body Fuel Injection for most domestic V8 engines originally equipped with a carburetor. Featuring an airflow rate of 1,000 CFM, this kit is capable of supporting up to 650 horsepower.
This kit offers a choice of three calibrations for great out of the box performance even with big camshafts. The included EZ-Street Bluetooth E-Tuner app provides easy setup, changes, and monitoring with crisp, clear graphics and easy navigation.
The unit mounts to any 4150 flange intake manifold and also accepts a traditional round air cleaner. It arrives fully preassembled and pressure-tested, complete with integrated injectors, throttle position and manifold sensors, fuel rails, linkage, as well as a Bosch 4.9 wideband oxygen sensor. It also includes an ECU, a high quality wiring harness with a simple 4-wire hookup, and detailed installation instructions.
EZ-Street features closed-loop, self-learning fuel technology, with a calibration wizard to make initial startup simple. The E-Tuner app (available for initial release on Android, with IOS to follow) allows users to configure the system, adjust settings, and also monitor performance through intuitive preprogrammed dashboards. Data logging, fuel control, optional spark control and dual electric fan management are accessible directly from a smartphone or tablet.
It also offers the option of fully programmable ignition control, enabling optimized performance and improved fuel efficiency. When paired with a Pro-Flo distributor (sold separately), the EZ-Street EFI delivers fully integrated timing control at the touch of your fingers. With an internal coil driver and compatibility across most HEI distributors, ready-to-run distributors as well as CDI boxes, the system eliminates the need for separate ignition modules.
The EZ-Street EFI system combines advanced annular-fuel-venturi distribution with modern CAN communication protocols. This provides reliable, high performance results in a simplified package!
Edelbrock 30700 EZ-Street EFI System Features:
- Fuel Injection Type: Throttle Body
- Flange Style: 4150 Square Bore
- Maximum Horsepower with Gasoline: 650
- Airflow Rate: 1000 CFM
- Metering Style: Speed Density
- Throttle Body Material: Cast Aluminum
- Throttle Body Color: Natural
- Fuel Injector Size: 90 lb/hr
- Venturi Quantity: 4
- Self Learning: Yes
- User Tunable: Yes
- MAP Sensor Included: Yes
- IAT Sensor Included: Yes
- TPS Sensor Included: Yes
- IAC Motor Included: Yes
- Quantity: Sold as a kit
Notes: Intended for use with engines that have been transplanted or swapped into an uncontrolled or pre-pollution controlled vehicle. It is not legal for use on pollution controlled vehicles.
The Edelbrock name has been a staple of the automotive performance industry since the 1940’s. Their product line includes virtually everything under the hood, from individual components to complete engines. This makes Edelbrock one of the most recognized and trusted brands in the racing and performance world!
More Images

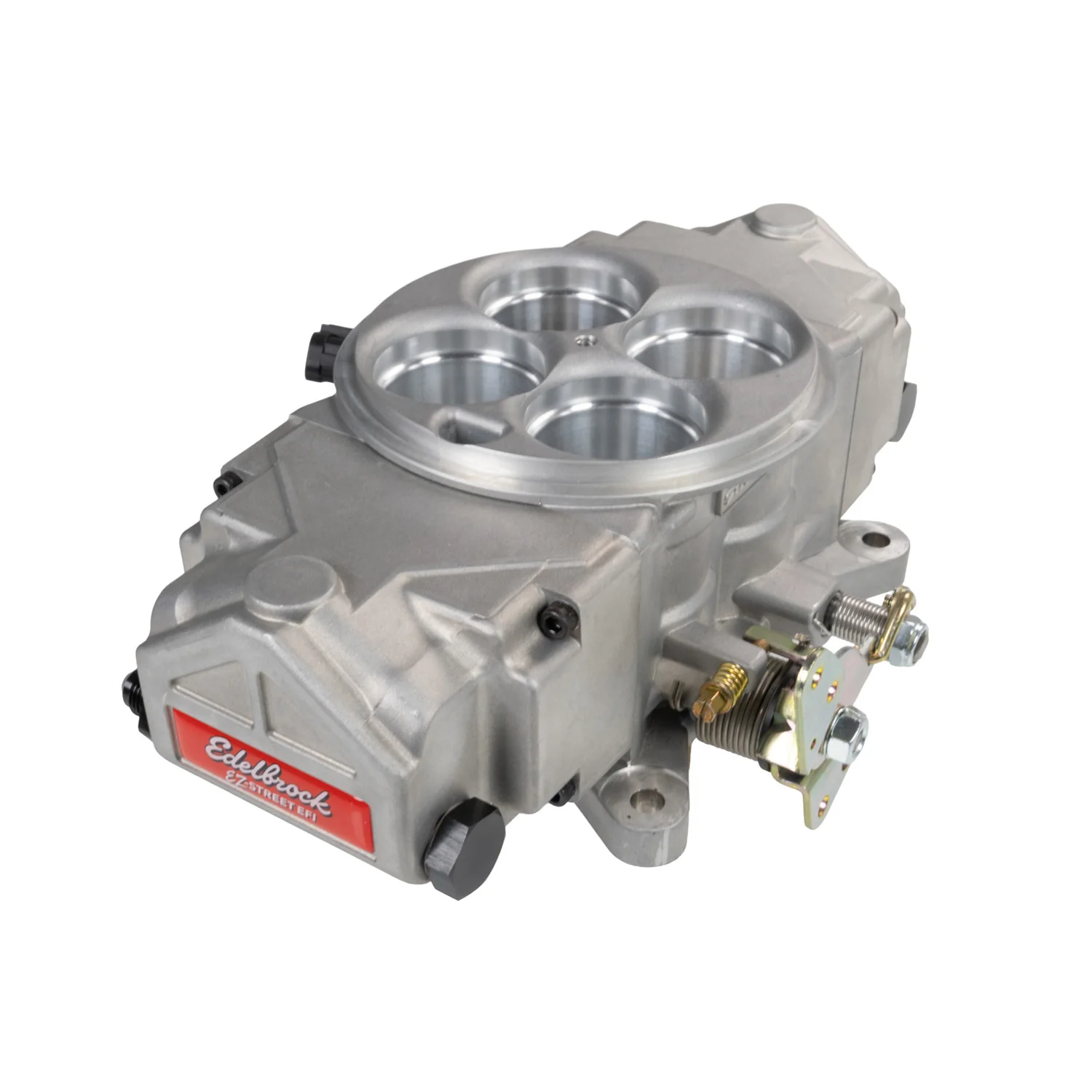

Edelbrock 30700 EZ-Street EFI System
