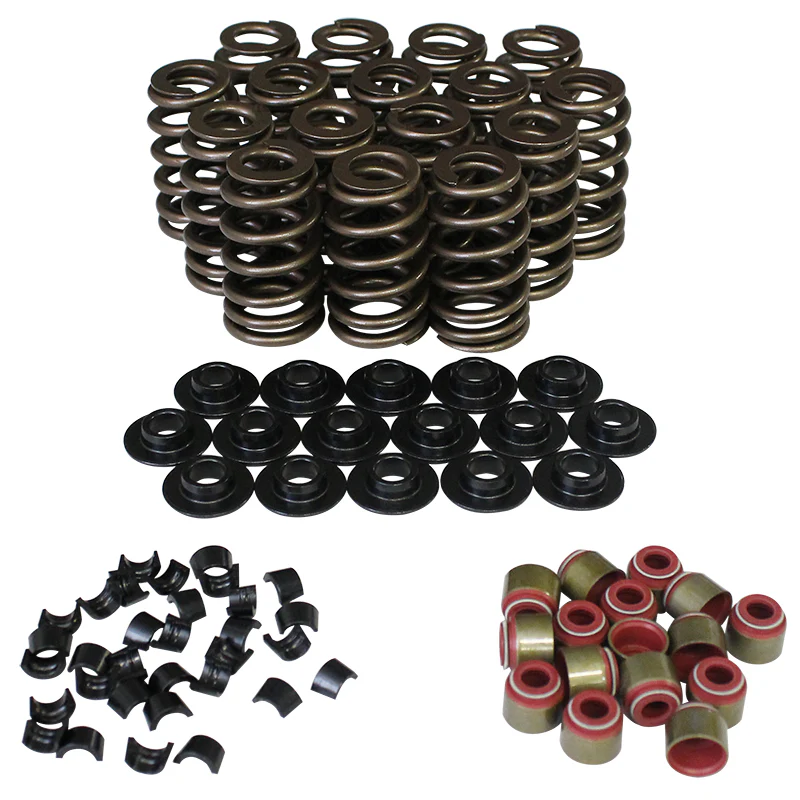

Howards Cams 98112-K1 Beehive Valve Spring and Retainer Kit
Howards Cams designed this 98112-K1 Ovate Beehive Valve Spring and Retainer Kit for GM LS engines. This kit includes valve springs, chromoly retainers, valve seals as well as alloy steel locks. With a .625" maximum lift, the springs work great for high performance street in addition to drag strip applications!
The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics as well as increasing high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently as well as allowing better heat dissipation for longer life.
Because of this unique Beehive design, the valve train can handle more RPM as well as more aggressive cam profiles. They deliver increased valve train stability as well as a much lighter valve train by using less spring pressure for better valve control and reduced weight of both the spring and retainer.
Howards Cams 98112-K1 Valve Spring and Retainer Kit Specs:
- Number of Springs Per Valve: Single
- Valve Spring Style: Beehive
- Maximum Valve Lift: 0.625 in.
- Coil Bind Height: 1.100 in.
- Outside Diameter of Outer Spring: 1.207 in.
- Inner Diameter of Outer Spring: 1.072 in.
- Spring Rate: 340 lbs./in.
- Closed Pressure: 135 lbs. @ 1.800
- Open Pressure: 348 lbs. @ 1.175
- Damper Spring Included: No
- Retainers Included: Yes
- Retainer Material: 4140 Chromoly Steel
- Valve Springs Coated: No
- Valve Stem Seals Included: Yes
- Valve Stem Diameter: 0.315 in.
- Locks Included: Yes
- Lock Material: Alloy Steel
- Lock Groove Quantity: 1-groove
- Lock Style: 7 degree
Howards Cams Valve Spring Kits – The Ultimate In Performance for the street as well as the drag strip!
