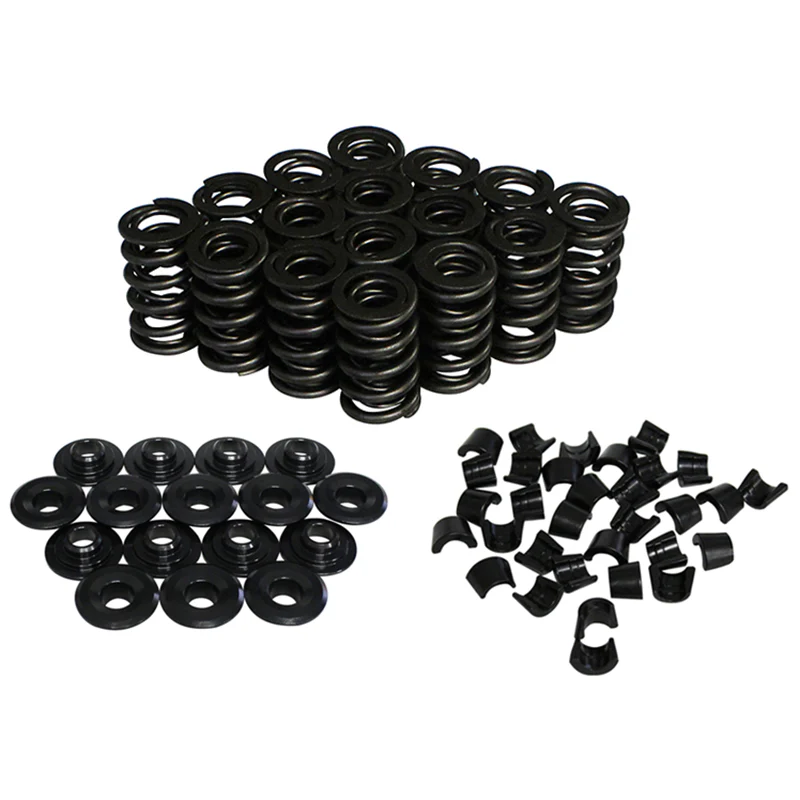

Howards Cams 98632-K12 Valve Spring and Retainer Kit

Howards Cams designed this 98632-K12 Valve Spring and Retainer Kit, and it includes valve springs, chromoly retainers as well as alloy steel locks.

With a .780" maximum lift, the springs work great for high performance street in addition to drag strip applications.

Choosing the correct valve spring allows your engine to reach its full potential in addition to minimizing wear and tear on your valvetrain.

Howards research and development engineers constantly update materials as well as manufacturing techniques to provide the best possible valve springs. These springs are coiled as well as heat-treated in the finest facilities available. Each spring is coiled, stress relieved, deburred, shot-peened as well as heat treated for years of high-performance service.

Howards Cams 98632-K12 Valve Spring and Retainer Kit Specs:

• Kit includes 98632 Valve Springs, 97118 Steel Retainers, as well as 93017 Valve Locks
• Number of Springs Per Valve: Dual
• Valve Spring Style: Standard
• Maximum Valve Lift: 0.780 in.
• Coil Bind Height: 1.100 in.
• Outside Diameter of Outer Spring: 1.500 in.
• Inner Diameter of Outer Spring: 1.100 in.
• Spring Rate: 413 lbs./in.
• Closed Pressure: 145 lbs. @ 1.940
• Open Pressure: 422 lbs. @ 1.250
• Damper Spring Included: No
• Retainers Included: Yes
• Retainer Material: 4140 Chromoly Steel
• Valve Springs Coated: No
• Valve Stem Seals Included: No
• Valve Stem Diameter: 0.344 in.
• Locks Included: Yes
• Lock Material: Alloy Steel
• Lock Groove Quantity: 1-groove
• Lock Style: 10 degree

Howards Cams Valve Spring Kits – The Ultimate In Performance!
