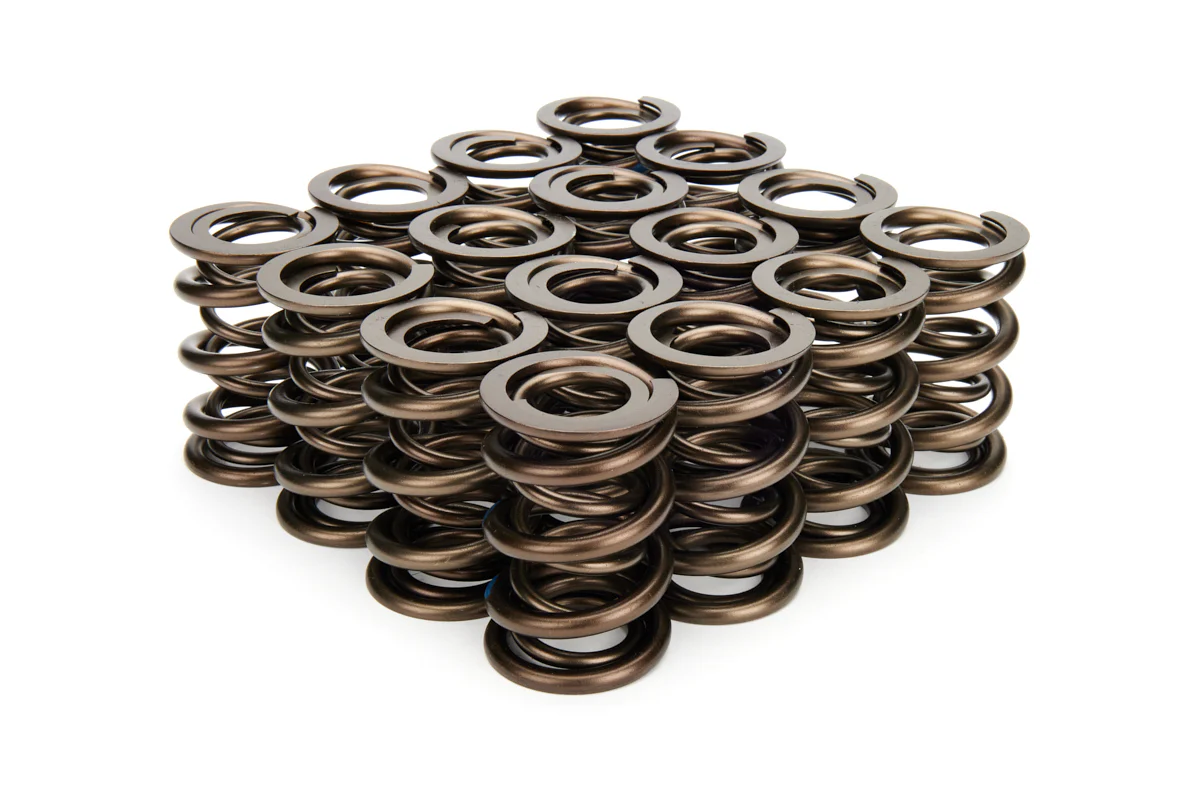

Manley 221425-16 NexTek Dual Valve Springs 1.640
Manley designed these NexTek 221425-16 Dual Valve Springs for drag racing in addition to high-performance street applications. They are ideal for Super Stock, Super Gas, Competition Eliminator, Pro Stock, alcohol as well as mountain motor applications.
Manufactured from “super clean” Hi-Tensile Chrome Silicon steel wire, they are also shot-peened to MIL spec for maximum fatigue life. Manley’s proprietary multi-step heat treating minimizes load loss, while the tip thickness is designed to eliminate overload breakage. Computer-aided modeling and design minimizes valve bounce as well as valve gear separation, and tightly controlled open end flatness reduces valve stem side loading.
Optimized “Select Size Fitting” between outer and inner springs also maximize harmonic dampening and reduces heat generated during operation.
Manley NexTek 221425-16 Dual Valve Springs Specs:
- Number of Springs Per Valve: Dual
- Valve Spring Style: Standard
- Maximum Valve Lift: 0.900 in.
- Installed Height and Pressure: 2.100 in. @ 280 lbs./in.
- Open Height and Pressure: 1.250 in. @ 795 lbs./in.
- Coil Bind Height: 1.150 in.
- Outside Diameter of Outer Spring: 1.640 in.
- Inner Diameter of Outer Spring: 1.185 in.
- Middle Spring ID: N/A
- Inner Spring ID: 0.860 in.
- Spring Rate: 604 lbs./in.
- Damper Spring Included: No
- Retainers Included: No
- Valve Springs Coated: No
- Valve Stem Seals Included: No
- Locks Included: No
- Quantity: Sold as a set of 16
Manley NexTek Series Valve Springs –Better By Design!
