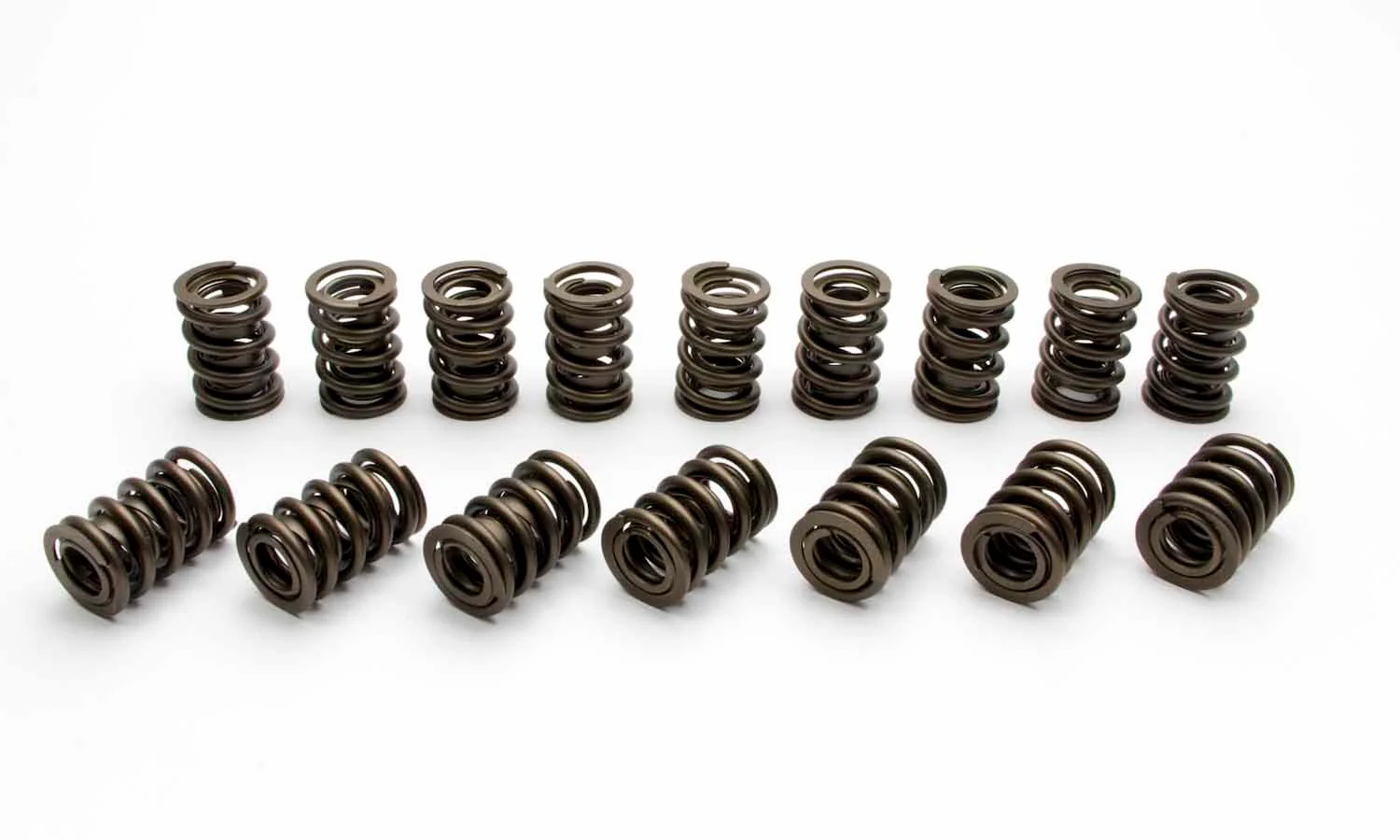

Manley Street Master 22408-16 Dual Valve Springs 1.437
Manley designed these Street Master 22408-16 Dual Valve Springs for high-performance street applications, and provide a long service life.
Manufactured from “super clean” Hi-Tensile Chrome Silicon steel wire, they are also shot-peened to MIL spec for maximum fatigue life. Manley’s proprietary multi-step heat treating minimizes load loss, while the tip thickness is designed to eliminate overload breakage. Computer-aided modeling and design minimizes valve bounce as well as valve gear separation, and tightly controlled open end flatness reduces valve stem side loading.
Optimized “Select Size Fitting” between outer and inner springs also maximize harmonic dampening and reduces heat generated during operation.
Manley Street Master 22408-16 Dual Valve Springs Specs:
- Number of Springs Per Valve: Dual
- Valve Spring Style: Standard
- Installed Height and Pressure: 1.800 in. @ 115 lbs./in.
- Open Height and Pressure: 1.200 in. @ 350 lbs./in.
- Coil Bind Height: 1.100 in.
- Outside Diameter of Outer Spring: 1.437 in.
- Inside Diameter of Inner Spring: 0.720 in.
- Spring Rate: 392 lbs./in.
- Seat Pressure: 250 lbs.
- Damper Spring Included: Yes
- Retainers Included: No
- Valve Springs Coated: No
- Valve Stem Seals Included: No
- Locks Included: No
- Quantity: Sold as a set of 16
Manley Street Master Series Valve Springs –Better By Design!
