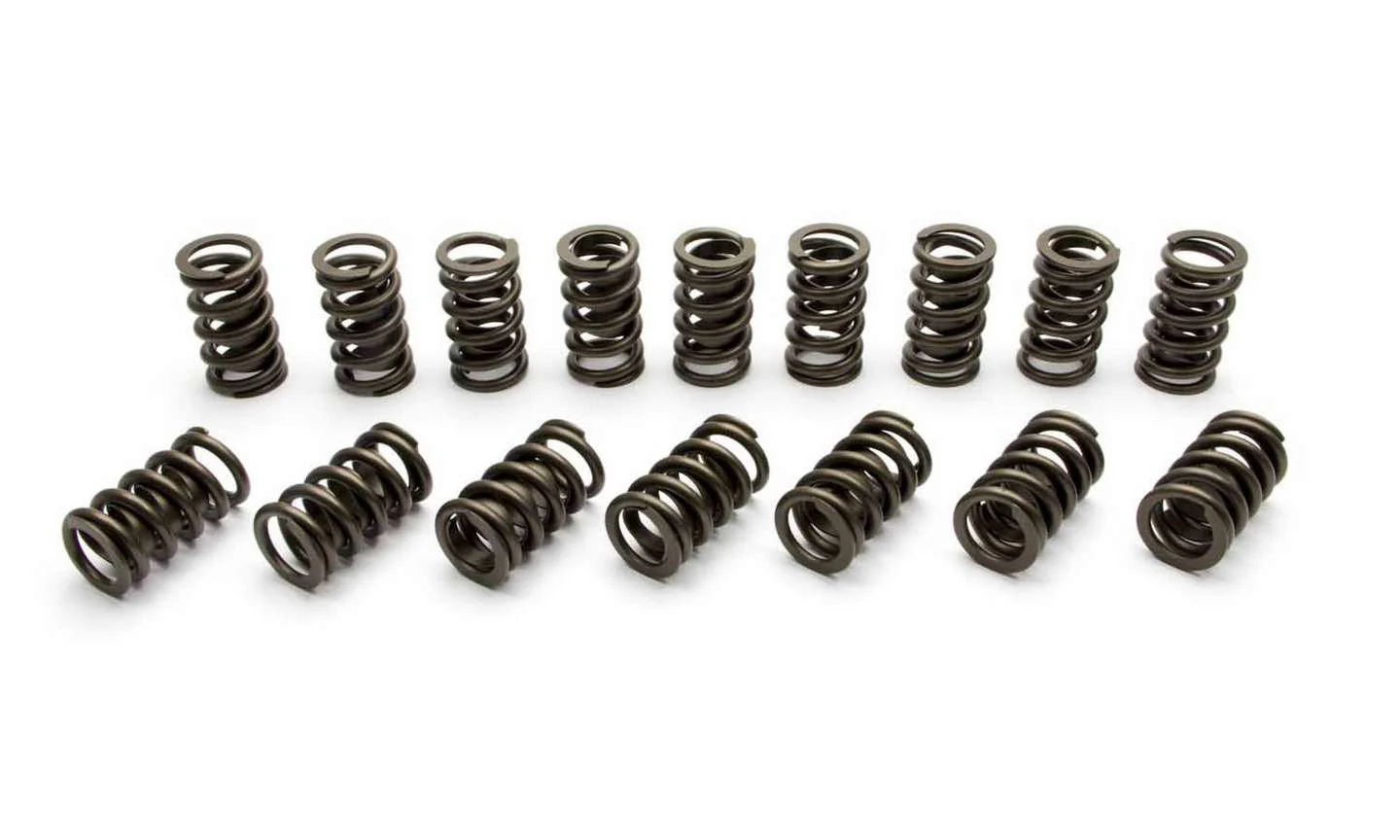

Manley Professional 22440-16 Dual Valve Springs 1.550
Manley designed these Professional 22440-16 Dual Valve Springs for oval track and drag racing applications.
Manufactured from “super clean” Hi-Tensile Chrome Silicon steel wire, they are also shot-peened to MIL spec for maximum fatigue life. Manley’s proprietary multi-step heat treating minimizes load loss, while the tip thickness is designed to eliminate overload breakage. Computer-aided modeling and design minimizes valve bounce as well as valve gear separation, and tightly controlled open end flatness reduces valve stem side loading.
Optimized “Select Size Fitting” between outer and inner springs also maximize harmonic dampening and reduces heat generated during operation.
Manley Professional 22440-16 Dual Valve Springs Specs:
- Number of Springs Per Valve: Dual
- Valve Spring Style: Standard
- Installed Height and Pressure: 1.850 in. @ 250 lbs./in.
- Open Height and Pressure: 1.150 in. @ 680 lbs./in.
- Coil Bind Height: 1.090 in.
- Outside Diameter of Outer Spring: 1.550 in.
- Inside Diameter of Inner Spring: 0.720 in.
- Spring Rate: 614 lbs./in.
- Damper Spring Included: Yes
- Retainers Included: No
- Valve Springs Coated: No
- Valve Stem Seals Included: No
- Locks Included: No
- Quantity: Sold as a set of 16
Manley Professional Series Valve Springs –Better By Design!
