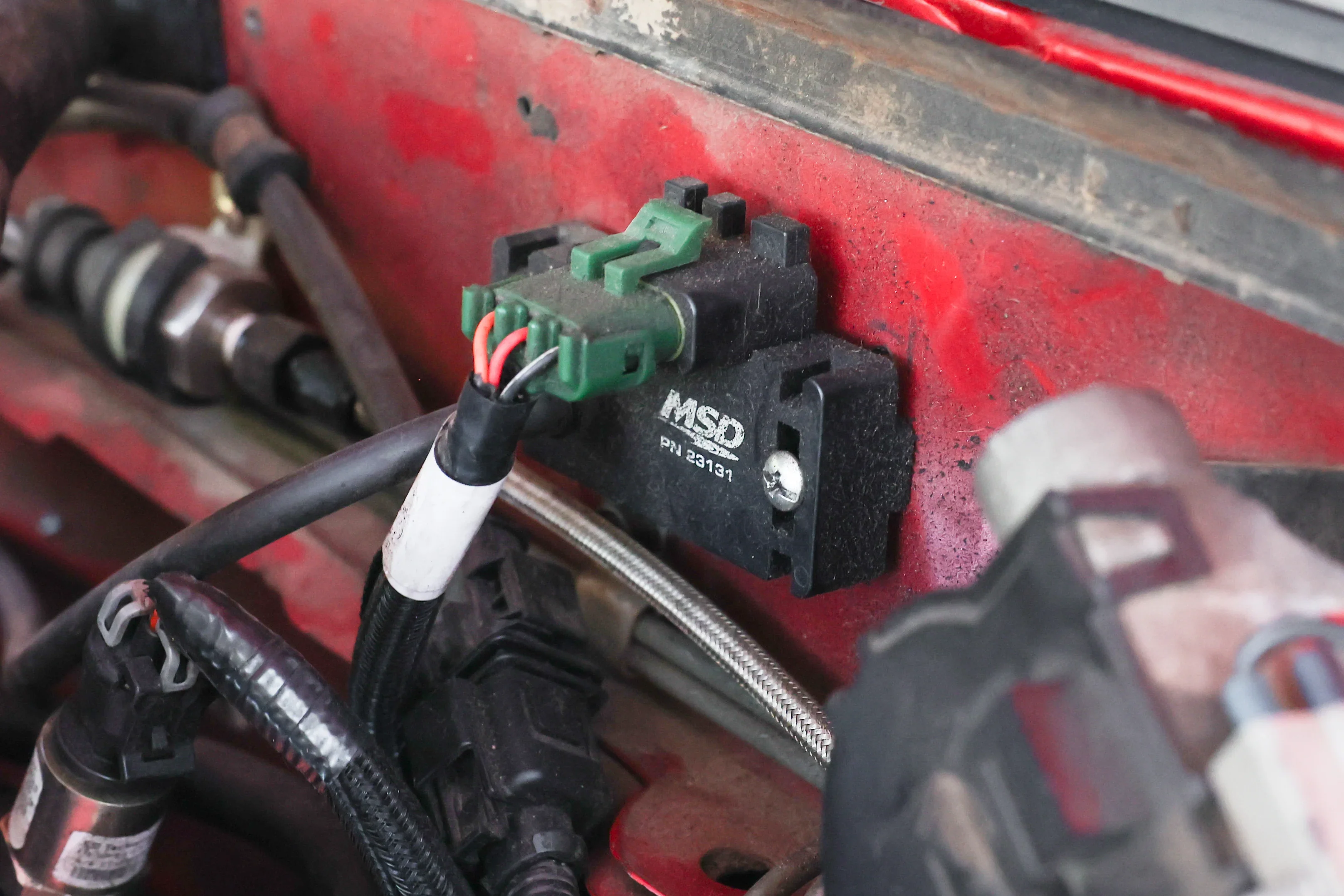

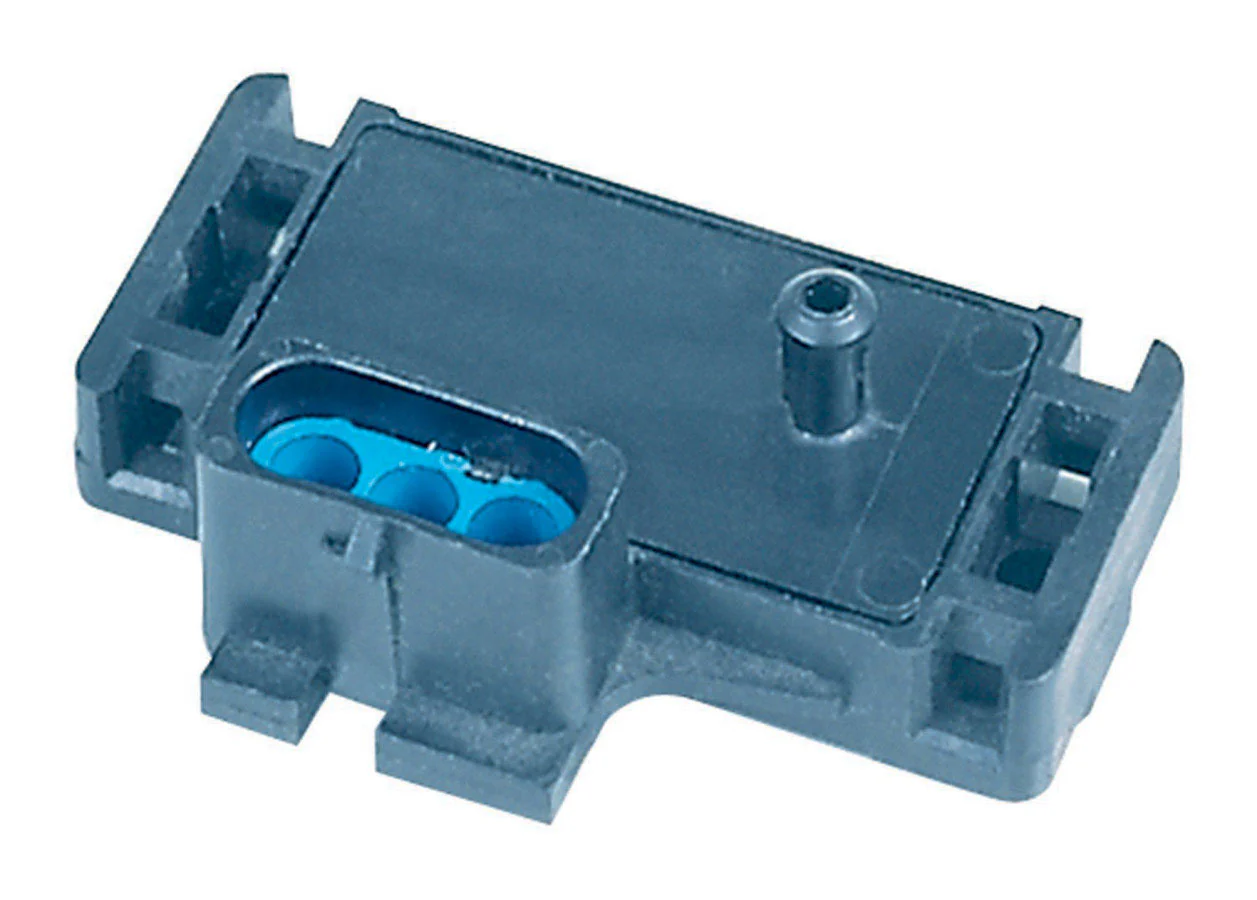

MSD 23131 MAP Sensor 3-Bar for Blown/Turbo
MSD designed this 23131 MAP Sensor 3-Bar for Blown/Turbo applications up to 30 pounds of boost.
The pressure inside the intake manifold is an extremely important input to the ECU. This sensor will respond to changes in manifold pressures and relay the information to the ECU in the form of a voltage signal ranging from about 1 volt to 5 volts. Several different versions are available for normally-aspirated and forced induction engines.
MSD 23131 MAP Sensor Features:
- Plug-in 2- 44PSIA MAP Sensor for the Programmable Digital-7
- MAP Sensor Range (bar): 3 bar
- MAP Sensor Range (psi): 29.0 psi
- MAP Sensor Style : Bosch
- Wiring Harness Included : No
- Quantity: Sold individually
From street cruisers to Top Fuel dragsters, MSD's ignition systems have been the industry leader for over 40 years. MSD continues to push the envelope with cutting-edge ignition technology as well as intake manifolds and EFI systems.
More Images
MSD 23131 MAP Sensor 3-Bar for Blown/Turbo
MSD designed this 23131 MAP Sensor 3-Bar for Blown/Turbo applications up to 30 pounds of boost.
The pressure inside the intake manifold is an extremely important input to the ECU. This sensor will respond to changes in manifold pressures and relay the information to the ECU in the form of a voltage signal ranging from about 1 volt to 5 volts. Several different versions are available for normally-aspirated and forced induction engines.
MSD 23131 MAP Sensor Features:
- Plug-in 2- 44PSIA MAP Sensor for the Programmable Digital-7
- MAP Sensor Range (bar): 3 bar
- MAP Sensor Range (psi): 29.0 psi
- MAP Sensor Style : Bosch
- Wiring Harness Included : No
- Quantity: Sold individually
From street cruisers to Top Fuel dragsters, MSD's ignition systems have been the industry leader for over 40 years. MSD continues to push the envelope with cutting-edge ignition technology as well as intake manifolds and EFI systems.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MSD designed this 23131 MAP Sensor 3-Bar for Blown/Turbo applications up to 30 pounds of boost.
The pressure inside the intake manifold is an extremely important input to the ECU. This sensor will respond to changes in manifold pressures and relay the information to the ECU in the form of a voltage signal ranging from about 1 volt to 5 volts. Several different versions are available for normally-aspirated and forced induction engines.
MSD 23131 MAP Sensor Features:
- Plug-in 2- 44PSIA MAP Sensor for the Programmable Digital-7
- MAP Sensor Range (bar): 3 bar
- MAP Sensor Range (psi): 29.0 psi
- MAP Sensor Style : Bosch
- Wiring Harness Included : No
- Quantity: Sold individually
From street cruisers to Top Fuel dragsters, MSD's ignition systems have been the industry leader for over 40 years. MSD continues to push the envelope with cutting-edge ignition technology as well as intake manifolds and EFI systems.
