MSD 8280 Pro CDI 600 High Output Race Ignition Coil

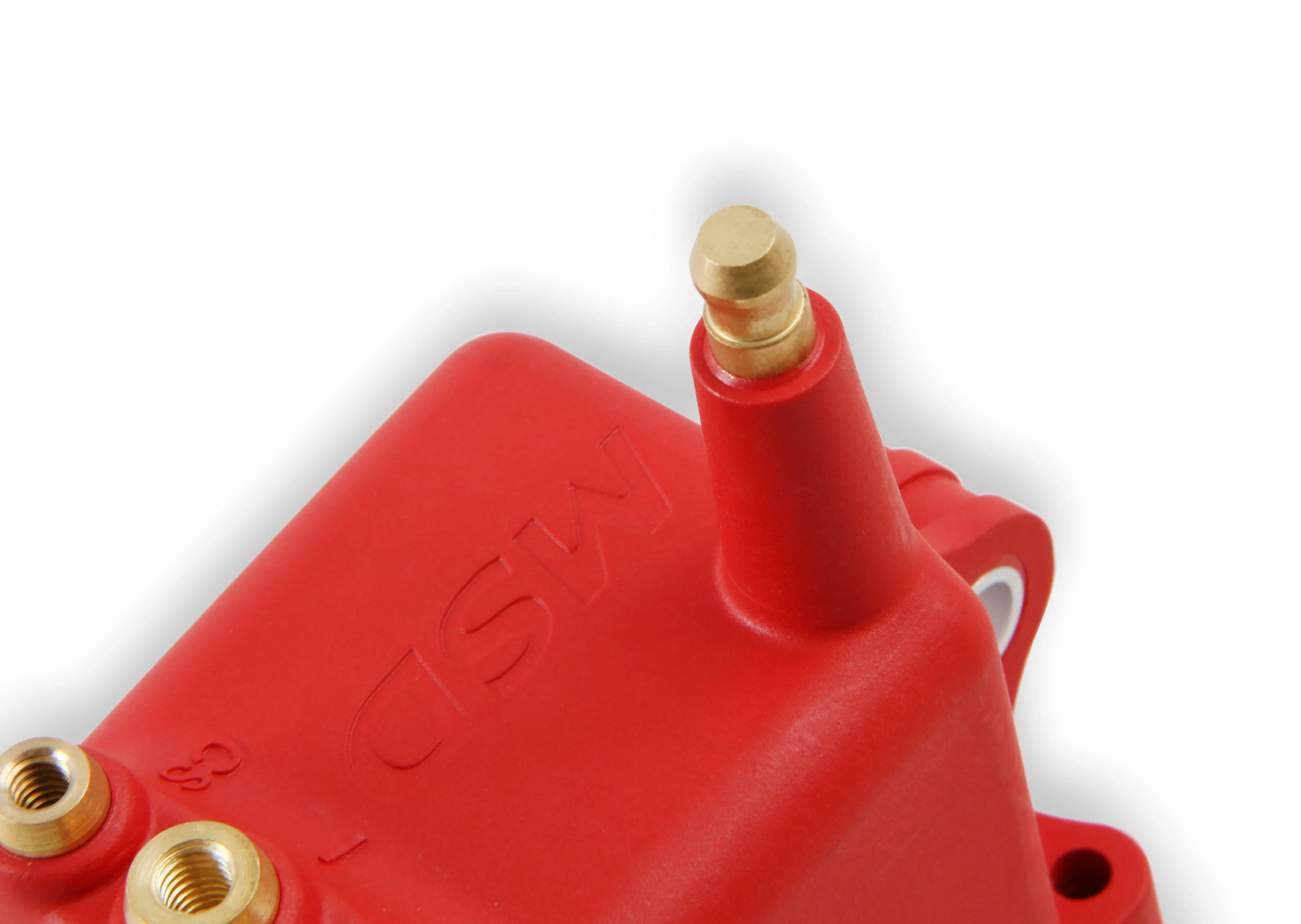

MSD designed this 8280 Pro CDI 600 High Output Race Ignition Coil for extreme racing for the Pro 600 Capacitive Discharge Ignition, PN 8000! It features MSD’s new U-Core winding design that produces more voltage and current than previous designs. It also has a HEI style secondary tower for secure coil wire connection.
This coil has a maximum voltage of 50,000 Volts as well as a Peak Current of 1700 mA! This also features over 200 millijoules of spark energy which makes these ideal for use with methanol, ethanol, E85 and forced induction as well as power adder combinations.
MSD 8280 Pro CDI 600 High Output Race Ignition Coil Features:
- Coil Type: Drag Race / Short Duration Use
- Maximum Voltage: 50,000 Volts
- Inductance: 500 mH
- Peak Current: 1700 mA
- Primary Resistance: .064 OHMs
- Secondary Resistance: 466 OHMs
- Spark Duration: 345 uS
- Turns Ratio: 56:1
- Coil Color: Red
- Coil Shape: Rectangular
- Coil Style: Coil Pack
- Coil Wire Attachment: Male/HEI
- Ballast Resistor Included: No
- Coil Wire Included: No
- Mounting Bracket Included: No
- Quantity: Sold individually
Street cruisers as well as Top Fuel dragsters trust MSD's ignition systems as the industry leader for over 40 years. MSD continues to push the envelope with cutting-edge ignition technology as well as intake manifolds and EFI systems.
Original: $57.95
-65%$57.95
$20.28More Images
