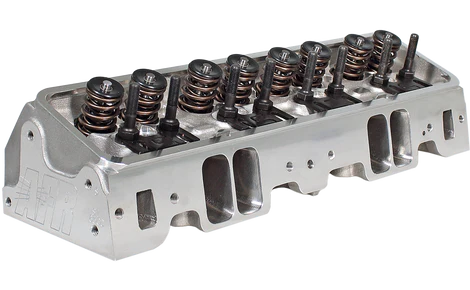

AFR 1034 SBC Eliminator Street Cylinder Head, Pair
AFR designed these 1034 SBC Eliminator Street Cylinder Heads especially for 350-400 cubic inch Small Block Chevy engines operating below 6500 RPM. These feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings as well as high quality components throughout.
These heads come fully assembled with ARP rockers studs, PAC Racing springs, viton valve seals in addition to AFR adjustable guide plates. Machined bead valve locks (not stamped), hardened spring cups, as well as one piece 8mm 21 4N Stainless Steel valves included also.
This product is also street legal in 50 states for 1994 and older emissions controlled vehicles under CARB EO #D-250-2.
AFR 1034 SBC Eliminator Street Cylinder Head Features:
- Cylinder Head Material: Aluminum
- Assembled: Yes
- Spark Plug Style: Straight
- Combustion Chamber Volume: 65cc
- Intake Runner Volume: 195cc
- Exhaust Runner Volume: 64cc
- Intake Port Shape: Rectangular
- Intake Port Location: Stock
- Exhaust Port Shape: Square
- Exhaust Port Location: Raised
- Valve Angle: 23 Degree
- Intake Valve Diameter: 2.050 in.
- Exhaust Valve Diameter: 1.600 in.
- Maximum Valve Lift: 0.600 in.
- Camshaft Style: Hydraulic Roller
- Outside Diameter of Outer Spring: 1.290 in.
- Valve Spring Pocket Diameter: 1.460 in.
- Maximum Valve Spring Pocket Machining: 1.750 in.
- Lock Style: 7 Degree
- Deck Thickness: 0.750 in.
- Rocker Stud Size: 3/8-24 in.
- Guide Plate Pushrod Size: 5/16 in.
- Retainer Material: Chromoly Steel
- Valve Cover Mounting Style: Perimeter Bolt
- Sold as a Pair
Note: Do NOT machine spring pad any deeper.
Established in 1970 in Valencia, CA, Air Flow Research is a family-owned and operated company building products for the Professional Racing in addition to Street markets. This includes racers, street performance fans, as well as everyone in-between. The Air Flow Research product lineup contains cylinder heads, intake manifolds, valves, gaskets, carburetor adapters as well as spacers, lifters as well as fasteners.
