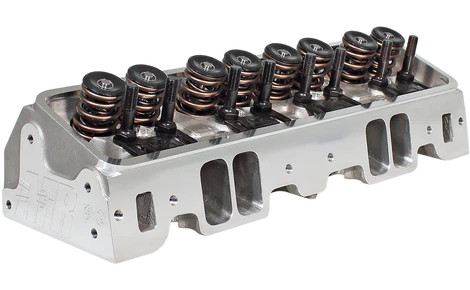

AFR 1132-TI SBC Eliminator Competition Angle Plug Cylinder Head, Pair
AFR designed these 1132-TI SBC Eliminator Competition Cylinder Heads especially for 350-400 cubic inch Small Block Chevy Gen 1 engines. These heads feature 100% CNC ported intake runners, exhaust ports and combustion chambers, A356 aluminum castings as well as high quality components throughout. This allows for extremely accurate as well as repeatable port location and performance.
Thess heads come fully assembled with ARP rockers studs, PAC Racing springs, viton valve seals in addition to AFR adjustable guide plates. Machined bead valve locks (not stamped), hardened spring cups, as well as one piece 8mm 21 4N Stainless Steel valves included also.
Recommended for race applications or radical "Pro Street" style builds. They also feature 60/40 valve spacing and requires shaft mount rocker arms for optimum valve train geometry (can be used with .050 offset intake rockers for drag race only applications).
AFR 1132-TI SBC Eliminator Competition Cylinder Head Features:
- Cylinder Head Material: Aluminum
- Assembled: Yes
- Spark Plug Style: Angled
- Combustion Chamber Volume: 70cc
- Intake Runner Volume: 235cc
- Exhaust Runner Volume: 80cc
- Intake Port Shape: Rectangular
- Intake Port Location: Stock
- Exhaust Port Shape: Square
- Exhaust Port Location: Raised .250 in.
- Valve Angle: 23 Degree
- Intake Valve Diameter: 2.125 in.
- Exhaust Valve Diameter: 1.600 in.
- Maximum Valve Lift: 0.800 in.
- Camshaft Style: Solid Roller
- Outside Diameter of Outer Spring: 1.550 in.
- Valve Spring Pocket Diameter: 1.580 in.
- Maximum Valve Spring Pocket Machining: 1.680 in.
- Lock Style: 10 Degree
- Deck Thickness: 0.750 in.
- Rocker Stud Size: 7/16-20 in.
- Guide Plate Pushrod Size: 5/16 in.
- Retainer Material: Titanium
- Valve Cover Mounting Style: Perimeter Bolt
- Sold as a Pair
Note: Do NOT machine spring pad any deeper.
Established in 1970 in Valencia, CA, Air Flow Research is a family-owned and operated company building products for the Professional Racing in addition to Street markets. This includes racers, street performance fans, as well as everyone in-between. The Air Flow Research product lineup contains cylinder heads, intake manifolds, valves, gaskets, carburetor adapters as well as spacers, lifters, fasteners, and more.
