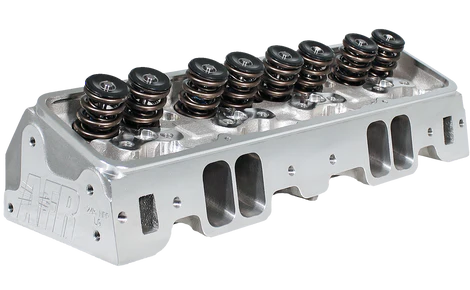

AFR 1137-TI SBC Eliminator Racing Angle Plug Cylinder Head, Pair
AFR designed these 1137-TI SBC Eliminator Racing Cylinder Heads especially for large displacement Small Block Chevy Gen 1 engines. These feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings as well as high quality components throughout. This allows for extremely accurate as well as repeatable port location and performance.
These heads come assembled with PAC Racing springs in addition to viton valve seals. Machined bead valve locks (not stamped), hardened spring cups, as well as bead lock Stainless Steel valves included also.
Recommended for race applications or radical "Pro Street" style builds. NPP stands for “no pushrod pinch”, and this is AFR’s largest 60/40 valve spacing head. These heads require shaft mount rocker arms for all applications and has extra machining for 3/8” pushrod clearance.
AFR 1137-TI SBC Eliminator Racing Cylinder Head Features:
- Cylinder Head Material: Aluminum
- Assembled: Yes
- Spark Plug Style: Angled
- Combustion Chamber Volume: 70cc
- Intake Runner Volume: 245cc
- Exhaust Runner Volume: 80cc
- Intake Port Shape: Rectangular
- Intake Port Location: Stock
- Exhaust Port Shape: Square
- Exhaust Port Location: Raised .250 in.
- Valve Angle: 23 Degree
- Intake Valve Diameter: 2.125 in.
- Exhaust Valve Diameter: 1.600 in.
- Maximum Valve Lift: 0.800 in.
- Camshaft Style: Solid Roller
- Outside Diameter of Outer Spring: 1.550 in.
- Valve Spring Pocket Diameter: 1.580 in.
- Maximum Valve Spring Pocket Machining: 1.680 in.
- Lock Style: 10 Degree
- Deck Thickness: 0.750 in.
- Retainer Material: Titanium
- Valve Cover Mounting Style: Perimeter Bolt
- Sold as a Pair
Note: Do NOT machine spring pad any deeper.
Established in 1970 in Valencia, CA, Air Flow Research is a family-owned and operated company building products for the Professional Racing in addition to Street markets. This includes racers, street performance fans, as well as everyone in-between. The Air Flow Research product lineup contains cylinder heads, intake manifolds, valves, gaskets, carburetor adapters as well as spacers, lifters, fasteners, and more.
Original: $3,685.00
-65%$3,685.00
$1,289.75AFR 1137-TI SBC Eliminator Racing Angle Plug Cylinder Head, Pair
AFR designed these 1137-TI SBC Eliminator Racing Cylinder Heads especially for large displacement Small Block Chevy Gen 1 engines. These feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings as well as high quality components throughout. This allows for extremely accurate as well as repeatable port location and performance.
These heads come assembled with PAC Racing springs in addition to viton valve seals. Machined bead valve locks (not stamped), hardened spring cups, as well as bead lock Stainless Steel valves included also.
Recommended for race applications or radical "Pro Street" style builds. NPP stands for “no pushrod pinch”, and this is AFR’s largest 60/40 valve spacing head. These heads require shaft mount rocker arms for all applications and has extra machining for 3/8” pushrod clearance.
AFR 1137-TI SBC Eliminator Racing Cylinder Head Features:
- Cylinder Head Material: Aluminum
- Assembled: Yes
- Spark Plug Style: Angled
- Combustion Chamber Volume: 70cc
- Intake Runner Volume: 245cc
- Exhaust Runner Volume: 80cc
- Intake Port Shape: Rectangular
- Intake Port Location: Stock
- Exhaust Port Shape: Square
- Exhaust Port Location: Raised .250 in.
- Valve Angle: 23 Degree
- Intake Valve Diameter: 2.125 in.
- Exhaust Valve Diameter: 1.600 in.
- Maximum Valve Lift: 0.800 in.
- Camshaft Style: Solid Roller
- Outside Diameter of Outer Spring: 1.550 in.
- Valve Spring Pocket Diameter: 1.580 in.
- Maximum Valve Spring Pocket Machining: 1.680 in.
- Lock Style: 10 Degree
- Deck Thickness: 0.750 in.
- Retainer Material: Titanium
- Valve Cover Mounting Style: Perimeter Bolt
- Sold as a Pair
Note: Do NOT machine spring pad any deeper.
Established in 1970 in Valencia, CA, Air Flow Research is a family-owned and operated company building products for the Professional Racing in addition to Street markets. This includes racers, street performance fans, as well as everyone in-between. The Air Flow Research product lineup contains cylinder heads, intake manifolds, valves, gaskets, carburetor adapters as well as spacers, lifters, fasteners, and more.
