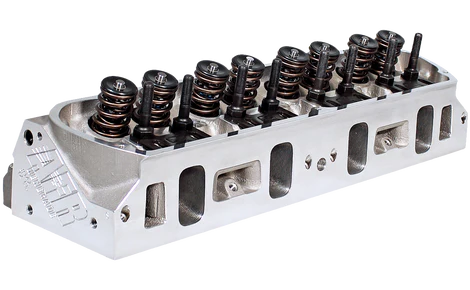

AFR 1383-716 SBF Renegade Competition Cylinder Head, Pair
AFR designed these 1383-716 SBF Renegade Competition Cylinder Heads especially for Small Block Ford engines operating to a maximum 7000-7200 RPM. These feature 100% CNC machined intake ports, exhaust ports and combustion chambers as well as being manufactured in A356 aluminum and assembled with high quality components. This allows for extremely accurate as well as repeatable port location and performance.
These heads come fully assembled with ARP rockers studs, PAC Racing springs, viton valve seals in addition to AFR adjustable guide plates. Machined bead valve locks (not stamped), hardened spring cups, as well as bead lock Stainless Steel valves included also.
AFR 1383-716 SBF Renegade Competition Cylinder Head Features:
- Cylinder Head Material: Aluminum
-
Assembled: Yes
- Combustion Chamber Volume: 72cc
- Intake Runner Volume: 195cc
- Exhaust Runner Volume: 70cc
- Intake Port Shape: Rectangular
- Intake Port Location: Stock
- Exhaust Port Shape: Square
- Exhaust Port Location: Raised .125 in.
- Valve Angle: 20 Degree
- Intake Valve Diameter: 2.050 in.
- Exhaust Valve Diameter: 1.600 in.
- Maximum Valve Lift: 0.650 in.
- Camshaft Style: Hydraulic Roller
- Outside Diameter of Outer Spring: 1.260 in.
- Valve Spring Pocket Diameter: 1.460 in.
- Maximum Valve Spring Pocket Machining: 1.625 in.
- Lock Style: 7 Degree
- Deck Thickness: 0.750 in.
- Rocker Stud Size: 7/16-20 in.
- Guide Plate Pushrod Size: 5/16 in.
- Retainer Material: Chromoly Steel
- Valve Cover Mounting Style: Perimeter Bolt
- Sold as a Pair
Note: Do NOT machine spring pad any deeper.
Established in 1970 in Valencia, CA, Air Flow Research is a family-owned and operated company building products for the Professional Racing in addition to Street markets. This includes racers, street performance fans, as well as everyone in-between. The Air Flow Research product lineup contains cylinder heads, intake manifolds, valves, gaskets, carburetor adapters as well as spacers, lifters, fasteners, and more.
