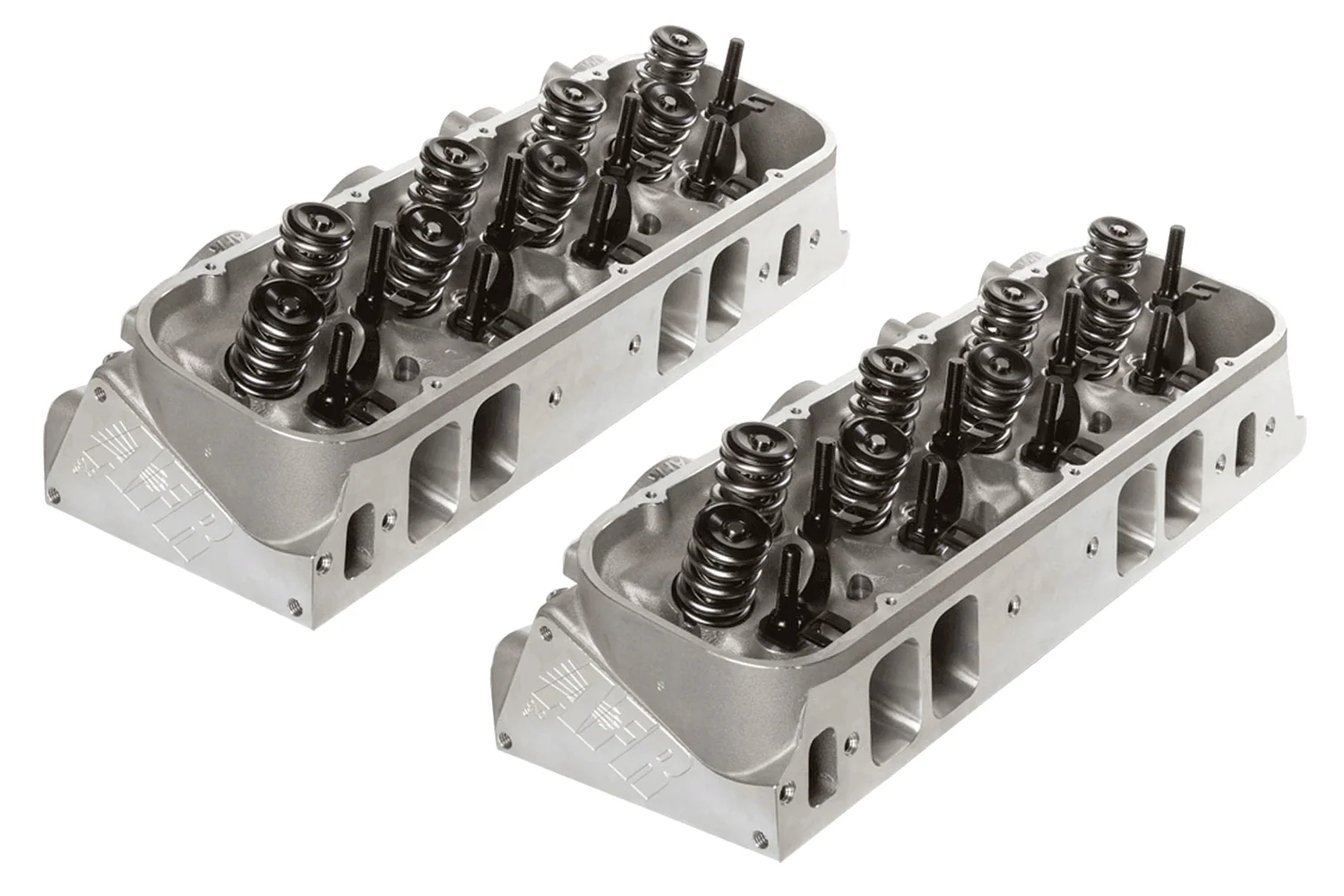

AFR 2010-TI BBC 357cc Magnum Cylinder Heads
AFR designed these 2010-TI BBC Magnum Cylinder Heads especially for Big Block Chevy engines up to 605 cubic inches operating at or below 7400 RPM. These heads feature fully CNC machined intake runners, exhaust ports as well as combustion chambers, and are capable of flowing 425 CFM at 0.800" of lift.
These heads come fully assembled with ARP rockers studs, PAC Racing springs, Viton valve seals in addition to AFR adjustable guide plates. Machined bead valve locks (not stamped), hardened spring cups, as well as titanium retainers and
Stainless Steel valves included also.
AFR 2010-TI BBC Magnum Cylinder Head Features:
- Cylinder Head Material: Aluminum
- Assembled: Yes
- Spark Plug Style: Angled
- Combustion Chamber Volume: 121cc
- Intake Runner Volume: 357cc
- Exhaust Runner Volume: 135cc
- Intake Port Shape: Rectangular
- Intake Port Location: Stock
- Exhaust Port Shape: Round
- Exhaust Port Location: .375 in. Raised
- Valve Angle: 24/4 Intake & 15/4 Exhaust
- Intake Valve Diameter: 2.300 in.
- Exhaust Valve Diameter: 1.880 in.
- Maximum Valve Lift: 0.850 in.
- Camshaft Style: Solid Roller
- Outside Diameter of Outer Spring: 1.625 in.
- Valve Spring Pocket Diameter: 1.725 in.
- Maximum Valve Spring Pocket Machining: 1.750 in.
- Minimum Bore Diameter: 4.250 in.
- Lock Style: 10 Degree
- Deck Thickness: 0.750 in.
- Rocker Stud Size: 7/16-20 in.
- Guide Plate Pushrod Size: 3/8 in.
- Retainer Material: Titanium
- Valve Cover Mounting Style: Perimeter Bolt
- Sold as a pair
Note: 1.000 in. longer head bolts needed on four bottom exhaust bolt holes.
Established in 1970 in Valencia, CA, Air Flow Research is a family-owned and operated company building products for the Professional Racing in addition to Street markets. This includes racers, street performance fans, as well as everyone in-between. The Air Flow Research product lineup contains cylinder heads, intake manifolds, valves, gaskets, carburetor adapters as well as spacers, lifters, fasteners, and more.
Original: $4,735.00
-65%$4,735.00
$1,657.25AFR 2010-TI BBC 357cc Magnum Cylinder Heads
