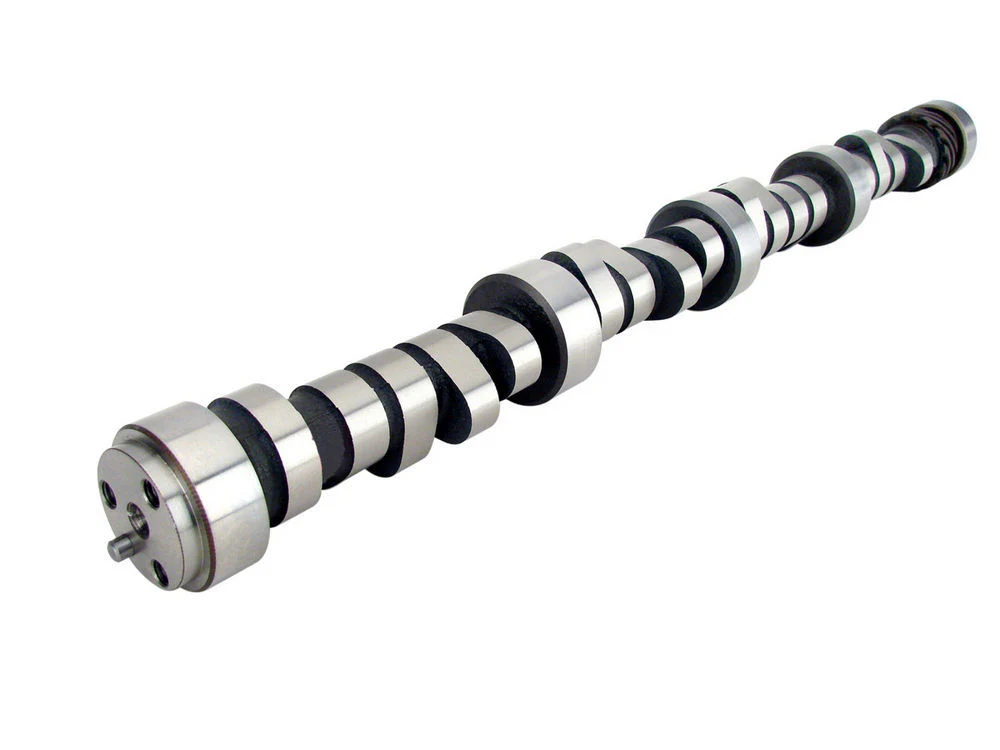

Comp Cams 01-424-8 BBC Gen VI Xtreme Energy Hydraulic Roller Camshaft XR294HR

This Comp Cams 01-424-8 BBC Xtreme Energy Hydraulic Roller Camshaft fits the 454-502 Gen VI Big Block Chevy from 1996-1999. Comp designed this cam for serious street/strip use, and it features strong low-end torque and a nice idle. A 10.5:1 or higher compression ratio, a good intake, headers, ported heads and a 3200+ stall speed torque converter are highly recommended.

Comp Cams 01-424-8 BBC Xtreme Energy Hydraulic Roller Camshaft Specs:

• For 454-502 cubic inch Gen VI Big Block Chevy engines from 1996-1999
• Adjustable valve train required
• Must use bronze tip fuel pump pushrod when using high pressure or high-volume pump
• Stock (O.E.) valve springs can NOT be used
• Basic RPM Range: 2800 to 6200
• Valve Lift Intake: .540
• Valve Lift Exhaust: .560
• Advertised Intake Duration: 294
• Advertised Exhaust Duration: 300
• Intake Duration at .050”: 242
• Exhaust Duration at .050”: 248
• Lobe Separation: 110
• Firing Order: 1-8-4-3-6-5-7-2
• Made in the USA

Comp Cams designed this Hydraulic Roller camshaft for high performance on the street and drag strip.

Comp Cams –The Absolute Leader In Valve Train Technology!
