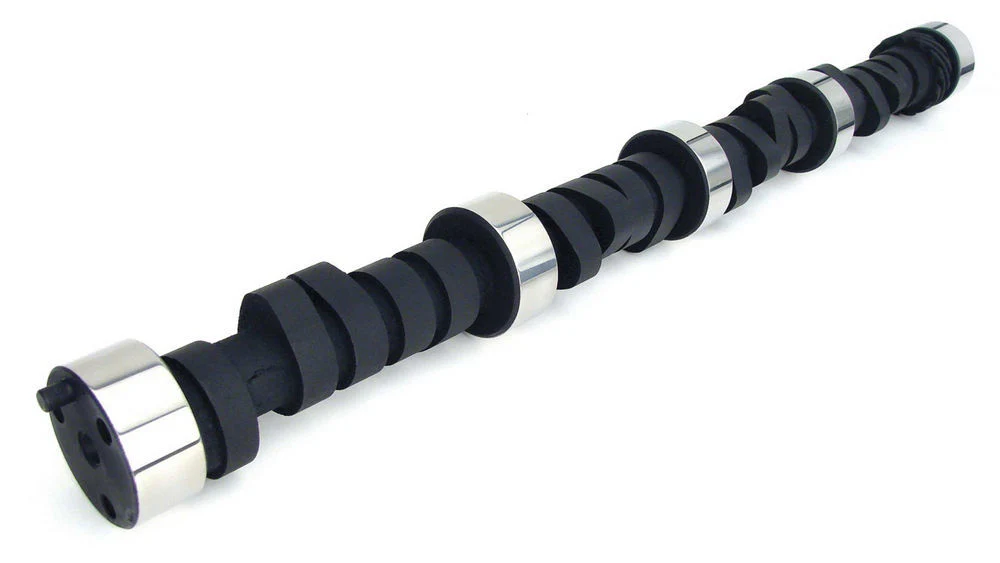

Comp Cams 11-239-3 BBC Xtreme 4x4 Hydraulic Flat Tappet Camshaft X4 270H

This Comp Cams 11-239-3 BBC X4 270H Xtreme 4x4 Hydraulic Flat Tappet Camshaft fits the 396-454 Big Block Chevy from 1967-1996. Comp designed this cam for street/performance use, and it features a good idle. A 9.0:1 or higher compression ratio, a 2000+ stall speed torque converter, improved intake manifold, headers & 3.55-3.90 gears are highly recommended.

Comp Cams 11-239-3 BBC X4 270H Xtreme 4x4 Hydraulic Flat Tappet Camshaft Specs:

• For 396-454 cubic inch Big Block Chevy engines from 1967-1996
• Stock (O.E.) valve springs can NOT be used.
• Basic RPM Range: 1600 to 5800
• Valve Lift Intake: .544
• Valve Lift Exhaust: .564
• Advertised Intake Duration: 270
• Advertised Exhaust Duration: 278
• Intake Duration at .050”: 226
• Exhaust Duration at .050”: 234
• Lobe Separation: 111
• Firing Order: 1-8-4-3-6-5-7-2
• Made in the USA

Notes: The 1965-66 396 has an oiling groove in the rear journal. This cam does not, so if you require the oiling groove, please contact us for a special order.

Comp Cams designed this Hydraulic Flat Tappet camshaft for high performance on the street and drag strip.

Comp Cams –The Absolute Leader In Valve Train Technology!
