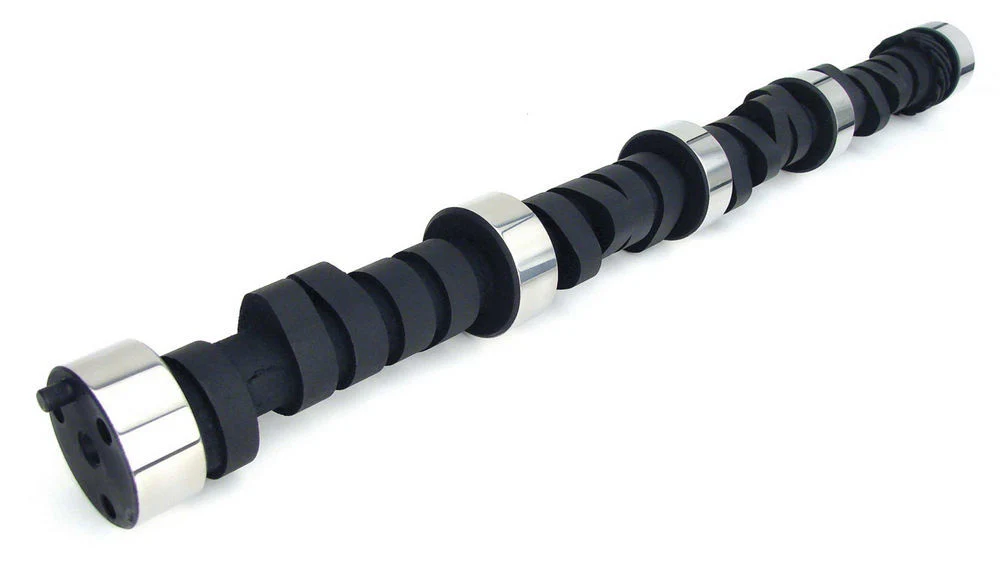

Comp Cams 11-604-5 BBC Drag Race Mechanical Flat Tappet Camshaft 294B-8

This Comp Cams 11-604-5 BBC 294B-8 Drag Race Mechanical Flat Tappet Camshaft fits 396-454 cubic inch Mark IV Big Block Chevy engines from 1967-1996. Comp designed this cam for street/strip use, and it features strong mid-range torque & horsepower and has a rough idle. A 10.5:1+ compression ratio and a 3900+ stall speed torque converter are highly recommended.

Comp Cams 11-604-5 BBC 294B-8 Drag Race Mechanical Flat Tappet Camshaft Specs:

• For Big Block Chevy 396-454 engines from 1967-1996
• Basic RPM Range: 3500 to 6500
• Valve Lift Intake: .580
• Valve Lift Exhaust: .605
• Intake Duration: 294
• Exhaust Duration: 304
• Intake Duration at .050”: 256
• Exhaust Duration at .050”: 266
• Lobe Separation: 108
• Intake Centerline: 108
• Firing Order: 1-8-4-3-6-5-7-2
• Made in the USA

Note: Stock (O.E.) valve springs can NOT be used

Comp Cams designed their Mechanical Flat Tappet camshafts for high performance on the street and drag strip.

Comp Cams – The Absolute Leader In Valve Train Technology!
