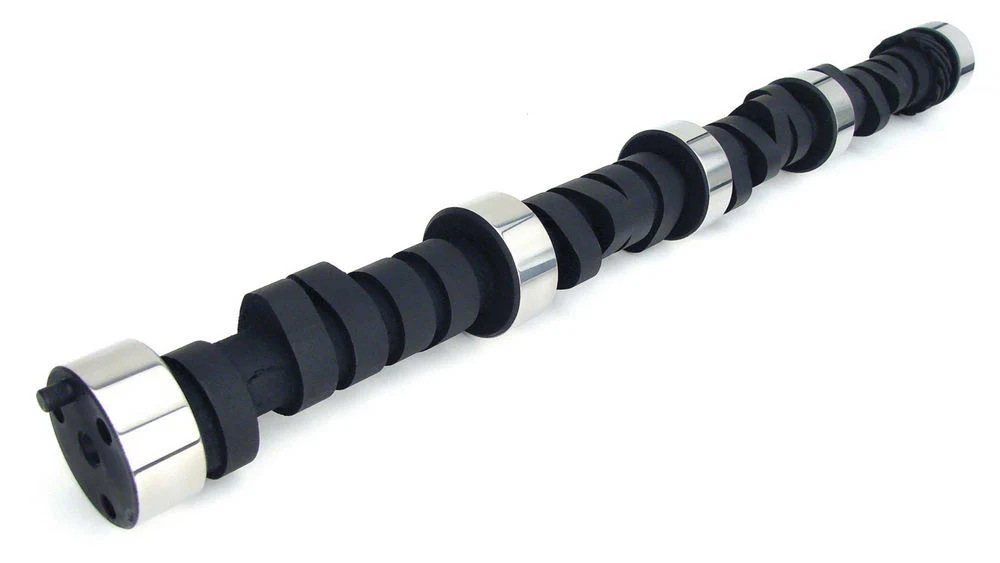

Comp Cams 12-242-2 SBC Xtreme Energy Hydraulic Flat Tappet Camshaft XE268H

This Comp Cams 12-242-2 SBC XE268H Xtreme Energy Hydraulic Flat Tappet Camshaft fits the 262-400 Small Block Chevy from 1958-1998. Comp designed this cam for street/performance use, and it features good low-end torque and a good idle. A 9.0:1 or higher compression ratio and a 2000+ stall speed torque converter are highly recommended.

Comp Cams 12-242-2 SBC XE268H Xtreme Energy Hydraulic Flat Tappet Camshaft Specs:

• For 262-400 cubic inch Small Block Chevy engines from 1958-1998
• Stock (O.E.) valve springs can NOT be used.
• Basic RPM Range: 1600 to 5800
• Valve Lift Intake: .477
• Valve Lift Exhaust: .480
• Advertised Intake Duration: 268
• Advertised Exhaust Duration: 280
• Intake Duration at .050”: 224
• Exhaust Duration at .050”: 230
• Lobe Separation: 110
• Firing Order: 1-8-4-3-6-5-7-2
• Made in the USA

Notes: 50-State legal for 1987 & earlier carbureted V8 SB Chevrolet 262-400 C.A.R.B. E.O. #D-279-3, #D-279-5, #D-279-6.

Comp Cams designed this Hydraulic Flat Tappet camshaft for high performance on the street and drag strip.

Comp Cams –The Absolute Leader In Valve Train Technology!
