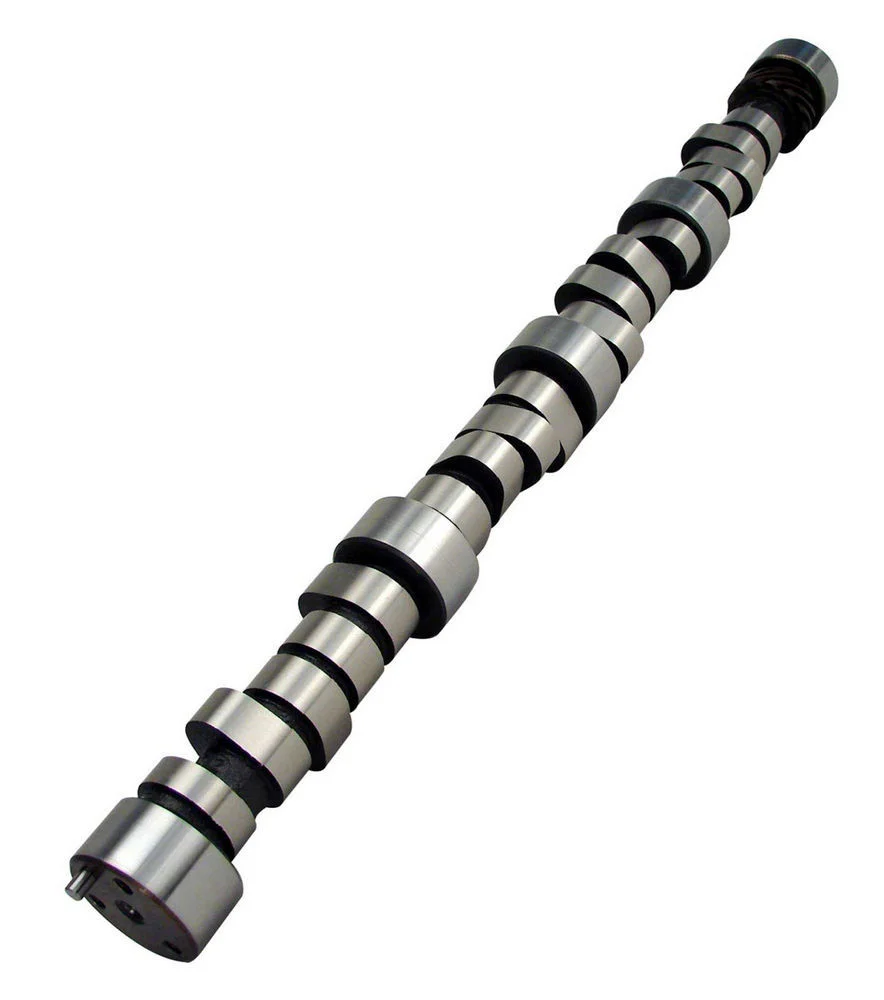

Comp Cams 12-413-8 SBC Xtreme 4x4 Retro-Fit Hydraulic Roller Camshaft X4270HR

This Comp Cams 12-413-8 SBC X4270HR Xtreme 4x4 Retro-Fit Hydraulic Roller Camshaft fits the 262-400 Small Block Chevy from 1958-1998. Comp designed this cam for street/strip use, and it features good mid-range power and a noticeable idle. A 9.5:1 or higher compression ratio, headers, 3.55 - 4.10 gears and a 1900+ stall speed torque converter are highly recommended.

Comp Cams 12-413-8 SBC X4270HR Xtreme 4x4 Retro-Fit Hydraulic Roller Camshaft Specs:

• For 262-400 cubic inch Small Block Chevy engines from 1958-1998
• Requires thrust button & wear plate
• Must use bronze tip fuel pump pushrod when using high pressure or high-volume pump
• Stock (O.E.) valve springs can NOT be used
• Basic RPM Range: 1500 to 5500
• Valve Lift Intake: .474
• Valve Lift Exhaust: .474
• Advertised Intake Duration: 270
• Advertised Exhaust Duration: 274
• Intake Duration at .050”: 220
• Exhaust Duration at .050”: 224
• Lobe Separation: 111
• Firing Order: 1-8-4-3-6-5-7-2
• Made in the USA

Comp Cams designed this Retro-Fit Hydraulic Roller camshaft for high performance on the street and drag strip.

Comp Cams –The Absolute Leader In Valve Train Technology!
