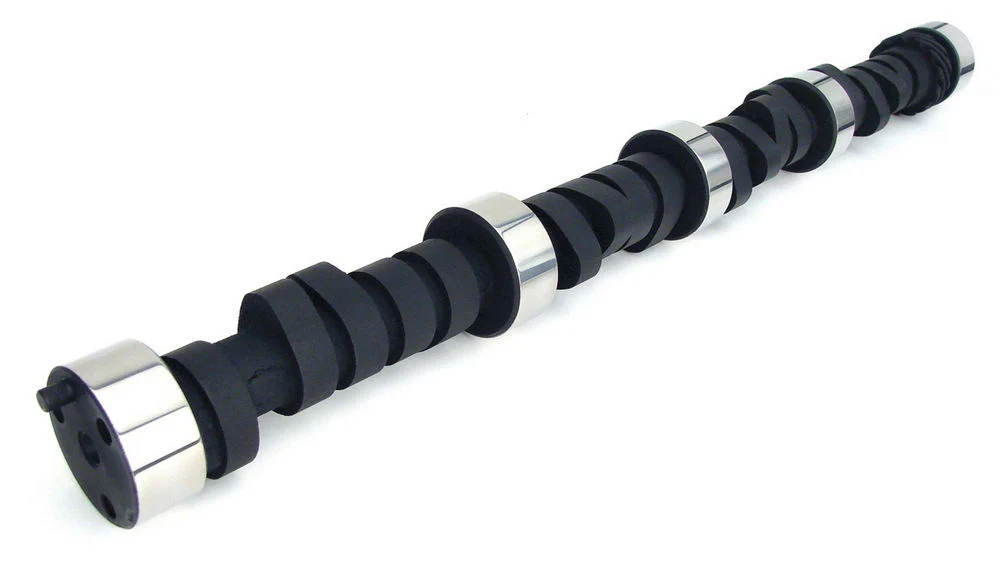

Comp Cams 12-677-4 SBC Xtreme Energy Mechanical Flat Tappet Camshaft XS274S

This Comp Cams 12-677-4 SBC Xtreme Energy Mechanical Flat Tappet Camshaft fits the 262-400 Small Block Chevy from 1958-1998. Comp designed this cam for street/strip use, and it features very strong mid-range torque and throttle response with a noticeable idle. A 9.5:1 or higher compression ratio, lower rear end gears and a 2400+ stall speed torque converter are highly recommended.

Comp Cams 12-677-4 SBC Xtreme Energy Mechanical Flat Tappet Camshaft Specs:

• For 262-400 cubic inch Small Block Chevy engines from 1958-1998
• Stock (O.E.) valve springs can NOT be used.
• Basic RPM Range: 2000 to 6400
• Valve Lift Intake: .501
• Valve Lift Exhaust: .510
• Advertised Intake Duration: 274
• Advertised Exhaust Duration: 280
• Intake Duration at .050”: 236
• Exhaust Duration at .050”: 242
• Lobe Separation: 110
• Intake Centerline: 106
• Firing Order: 1-8-4-3-6-5-7-2
• Made in the USA

Comp Cams designed this Mechanical Flat Tappet camshaft for high performance on the street and drag strip.

Comp Cams –The Absolute Leader In Valve Train Technology!
