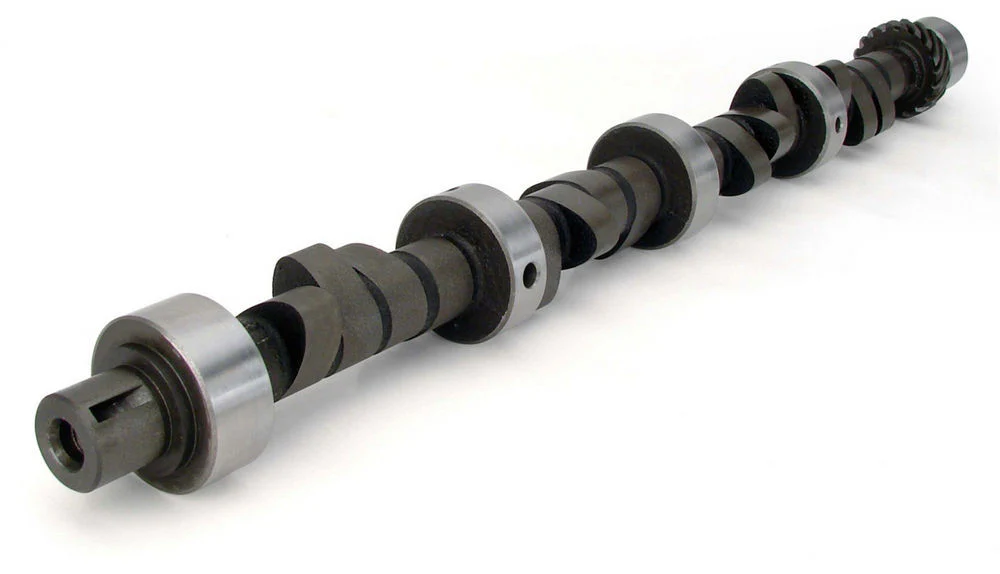

Comp Cams 20-214-4 SBM Magnum Hydraulic Flat Tappet Camshaft 270H

This Comp Cams 20-214-4 SBM 270H Magnum Hydraulic Flat Tappet Camshaft fits the 273-360 Small Block Chrysler from 1964-2002. Comp designed this cam for performance street/strip use, and it features good low-end torque and a smooth idle. A 9.0:1 or higher compression ratio, dual exhaust, 3.53 - 3.91 gears, and a 2200+ stall speed torque converter are highly recommended.

Comp Cams 20-214-4 SBM 270H Magnum Hydraulic Flat Tappet Camshaft Specs:

• For 273-360 cubic inch Small Block Chrysler engines from 1964-2002
• Stock (O.E.) valve springs can NOT be used.
• Basic RPM Range: 1800 to 5800
• Valve Lift Intake: .470
• Valve Lift Exhaust: .470
• Advertised Intake Duration: 270
• Advertised Exhaust Duration: 270
• Intake Duration at .050”: 224
• Exhaust Duration at .050”: 224
• Lobe Separation: 110
• Intake Centerline: 106
• Firing Order: 1-8-4-3-6-5-7-2
• Made in the USA

Comp Cams designed this Hydraulic Flat Tappet camshaft for high performance on the street and drag strip.

Comp Cams –The Absolute Leader In Valve Train Technology!
