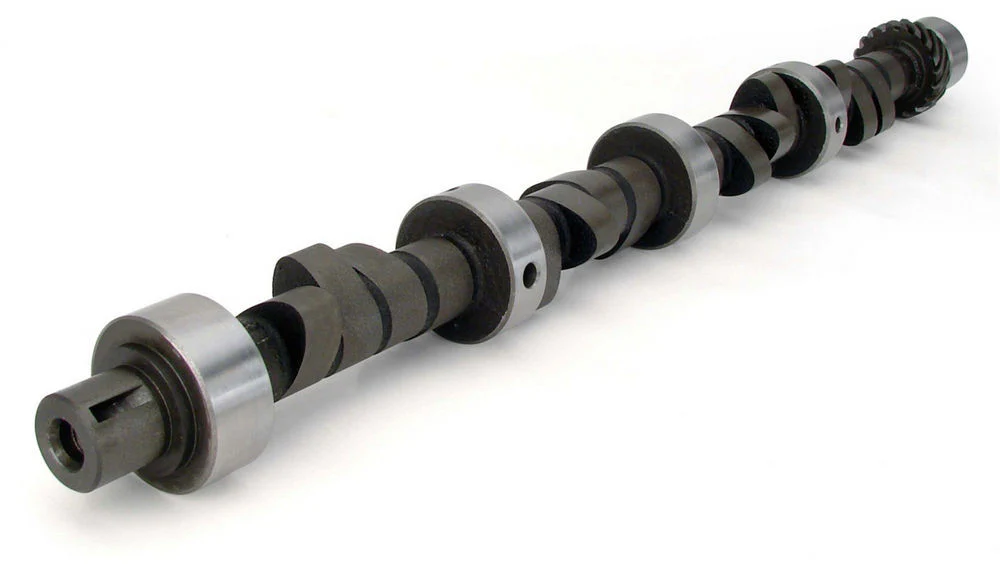

Comp Cams 20-228-4 SBM Xtreme Energy Hi-Lift Hydraulic Flat Tappet Camshaft XE285HL
This Comp Cams 20-228-4 SBM XE285HL Xtreme Energy Hi-Lift Hydraulic Flat Tappet Camshaft fits the 273-360 Small Block Chrysler from 1964-2002. Comp designed this cam for serious street/strip use, and it features strong mid-range and upper RPM power. Hi-Lift design to take advantage of ported heads & single plane intake. A 9.5:1 or higher compression ratio and a 2900+ stall speed torque converter are highly recommended.
Comp Cams 20-228-4 SBM XE285HL Xtreme Energy Hi-Lift Hydraulic Flat Tappet Camshaft Specs:
- For 273-360 cubic inch Small Block Chrysler engines from 1964-2002
- Stock (O.E.) valve springs can NOT be used.
- Basic RPM Range: 2500 to 6500
- Valve Lift Intake: .545
- Valve Lift Exhaust: .545
- Advertised Intake Duration: 285
- Advertised Exhaust Duration: 297
- Intake Duration at .050”: 241
- Exhaust Duration at .050”: 247
- Lobe Separation: 110
- Intake Centerline: 106
- Firing Order: 1-8-4-3-6-5-7-2
- Made in the USA
Comp Cams designed this Hydraulic Flat Tappet camshaft for high performance on the street and drag strip.
Comp Cams –The Absolute Leader In Valve Train Technology!
Original: $297.95
-65%$297.95
$104.28Comp Cams 20-228-4 SBM Xtreme Energy Hi-Lift Hydraulic Flat Tappet Camshaft XE285HL
This Comp Cams 20-228-4 SBM XE285HL Xtreme Energy Hi-Lift Hydraulic Flat Tappet Camshaft fits the 273-360 Small Block Chrysler from 1964-2002. Comp designed this cam for serious street/strip use, and it features strong mid-range and upper RPM power. Hi-Lift design to take advantage of ported heads & single plane intake. A 9.5:1 or higher compression ratio and a 2900+ stall speed torque converter are highly recommended.
Comp Cams 20-228-4 SBM XE285HL Xtreme Energy Hi-Lift Hydraulic Flat Tappet Camshaft Specs:
- For 273-360 cubic inch Small Block Chrysler engines from 1964-2002
- Stock (O.E.) valve springs can NOT be used.
- Basic RPM Range: 2500 to 6500
- Valve Lift Intake: .545
- Valve Lift Exhaust: .545
- Advertised Intake Duration: 285
- Advertised Exhaust Duration: 297
- Intake Duration at .050”: 241
- Exhaust Duration at .050”: 247
- Lobe Separation: 110
- Intake Centerline: 106
- Firing Order: 1-8-4-3-6-5-7-2
- Made in the USA
Comp Cams designed this Hydraulic Flat Tappet camshaft for high performance on the street and drag strip.
Comp Cams –The Absolute Leader In Valve Train Technology!
