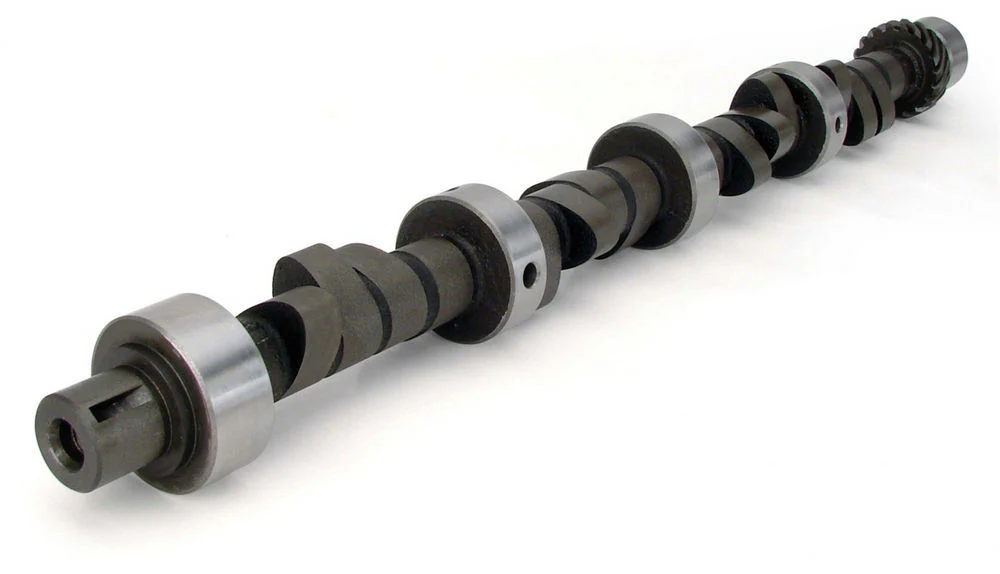

Comp Cams 20-243-4 SBM Magnum Hydraulic Flat Tappet Camshaft 292H

This Comp Cams 20-243-4 SBM 292H Magnum Hydraulic Flat Tappet Camshaft fits the 273-360 Small Block Chrysler from 1964-2002. Comp designed this cam for serious street/strip use, and it features good low-end torque. A 9.5 - 10.5:1 or higher compression ratio, aftermarket manifold, headers, 3.91 gear and a 3400+ stall speed torque converter are highly recommended.

Comp Cams 20-243-4 SBM 292H High Energy Hydraulic Flat Tappet Camshaft Specs:

• For 273-360 cubic inch Small Block Chrysler engines from 1964-2002
• Stock (O.E.) valve springs can NOT be used.
• Basic RPM Range: 3000 to 6500
• Valve Lift Intake: .501
• Valve Lift Exhaust: .501
• Advertised Intake Duration: 292
• Advertised Exhaust Duration: 292
• Intake Duration at .050”: 244
• Exhaust Duration at .050”: 244
• Lobe Separation: 110
• Intake Centerline: 106
• Firing Order: 1-8-4-3-6-5-7-2
• Made in the USA

Comp Cams designed this Hydraulic Flat Tappet camshaft for high performance on the street and drag strip.

Comp Cams –The Absolute Leader In Valve Train Technology!
