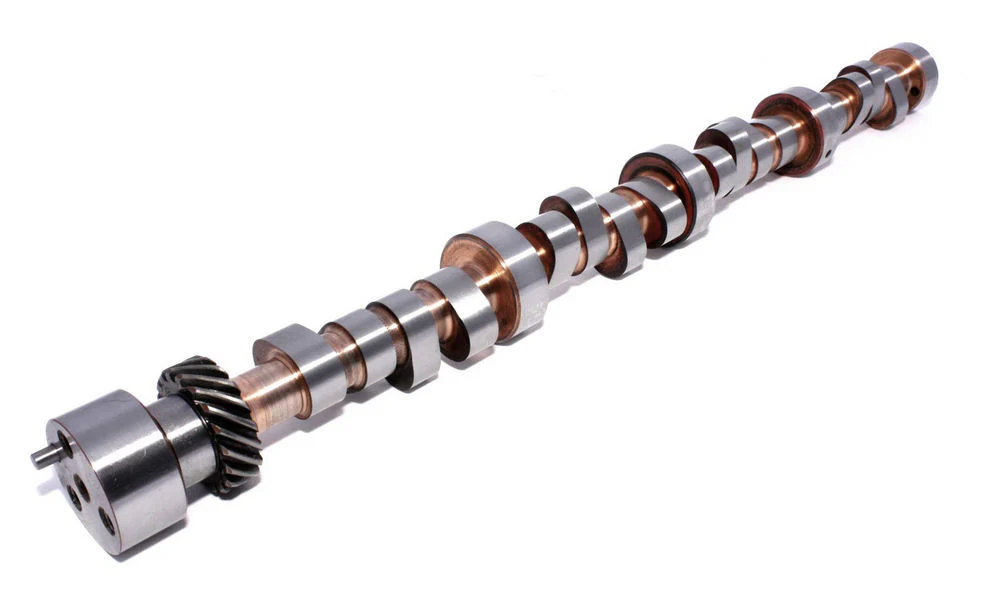

Comp Cams 23-712-9 BBM Xtreme Energy Hydraulic Roller Camshaft XR286HR-10

This Comp Cams 23-712-9 BBM Xtreme Energy Retro-Fit Hydraulic Roller Camshaft fits the 383-440 Big Block Chrysler from 1959-1980. Comp designed this cam for street/strip use, and it features excellent mid-range torque and a rough idle. A 9.5:1 or higher compression ratio, headers, 3.91+ rear end gears and a 2900+ stall speed torque converter are highly recommended.

Comp Cams 23-712-9 BBM Xtreme Energy Retro-Fit Hydraulic Roller Camshaft Specs:

• For 383-440 cubic inch Big Block Chrysler engines from 1959-1980
• Stock (O.E.) valve springs can NOT be used.
• Three Bolt
• Basic RPM Range: 2500 to 6200
• Valve Lift Intake: .544
• Valve Lift Exhaust: .541
• Advertised Intake Duration: 286
• Advertised Exhaust Duration: 294
• Intake Duration at .050”: 236
• Exhaust Duration at .050”: 242
• Lobe Separation: 110
• Intake Centerline: 106
• Firing Order: 1-8-4-3-6-5-7-2
• Made in the USA

Comp Cams designed this Hydraulic Roller camshaft for high performance on the street and drag strip.

Comp Cams –The Absolute Leader In Valve Train Technology!
