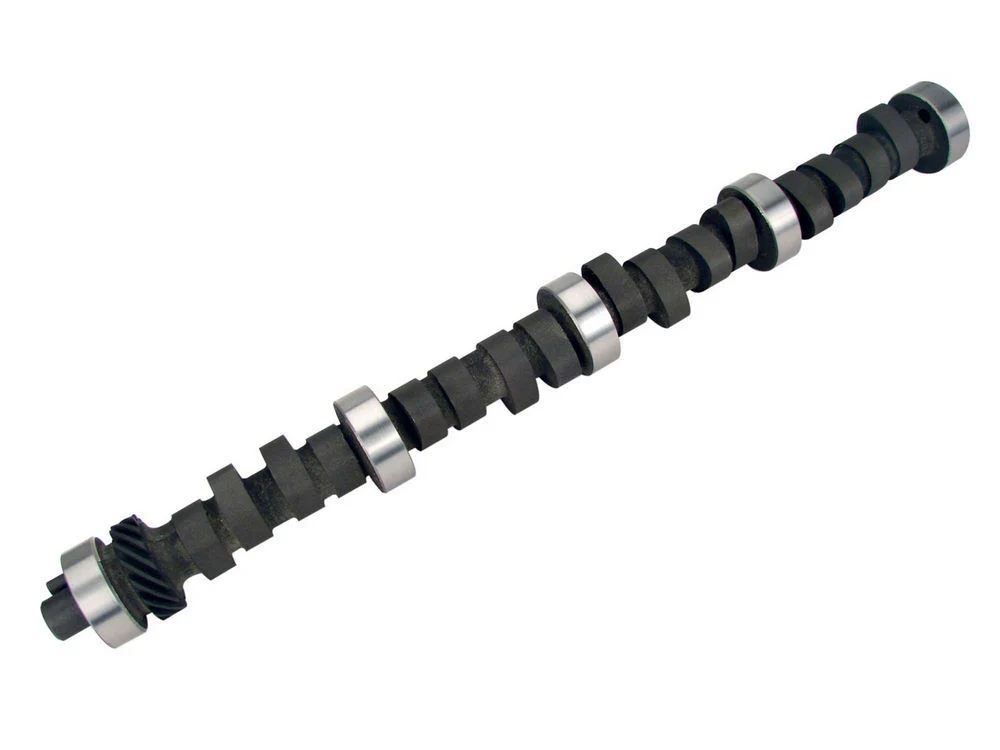

Comp Cams 34-337-4 BBF Magnum Hydraulic Flat Tappet Camshaft 305H

This Comp Cams 34-337-4 BBF 305H Magnum Hydraulic Flat Tappet Camshaft fits the 429-460 Big Block Ford from 1968-1995. Comp designed this cam for limited street use/bracket racing, and it features strong top end power and a radical racy idle. A 10.5:1 or higher compression ratio and a 3400+ stall speed torque converter are highly recommended.

Comp Cams 34-337-4 BBF 305H Magnum Hydraulic Flat Tappet Camshaft Specs:

• For 429-460 cubic inch Big Block Ford engines from 1968-1995
• Basic RPM Range: 3000 to 6800
• Valve Lift Intake: .585
• Valve Lift Exhaust: .585
• Intake Duration: 305

• Exhaust Duration: 305

• Intake Duration at .050”: 253
• Exhaust Duration at .050”: 253
• Lobe Separation: 110
• Intake Centerline: 110
• Lobes designed to take maximum advantage of .875” diameter lifter
• Firing Order: 1-5-4-2-6-3-7-8
• Made in the USA

Notes: Stock (O.E.) valve springs can NOT be used.

Comp Cams designed this Hydraulic Flat Tappet camshaft for high performance on the street and drag strip.

Comp Cams – The Absolute Leader In Valve Train Technology!
