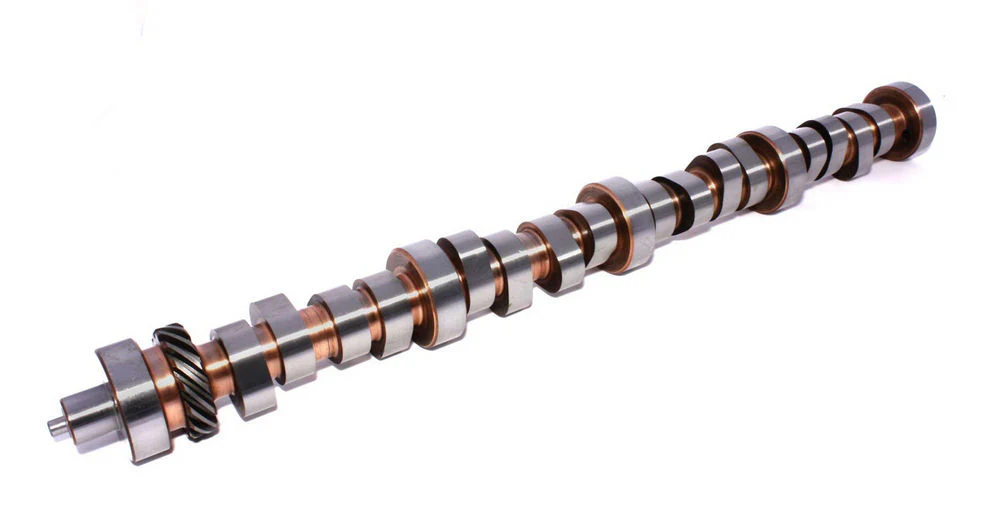

Comp Cams 34-772-9 BBF Xtreme Energy Mechanical Roller Camshaft XR286R-10

This Comp Cams 34-772-9 BBF Xtreme Energy Solid Roller Camshaft fits the 429-460 Big Block Ford from 1968-1995. Comp designed this cam for street/strip use, and it features a rough idle and is great for weekend warriors. A 10.0:1 or higher compression ratio, intake, exhaust, gears and a 3400+ stall speed torque converter are highly recommended.

Comp Cams 34-772-9 BBF Xtreme Energy Solid Roller Camshaft Specs:

• For 429-460 cubic inch Big Block Ford engines from 1968-1995
• Basic RPM Range: 3000 to 7000
• Valve Lift Intake: .664
• Valve Lift Exhaust: .671
• Intake Duration: 286
• Exhaust Duration: 292
• Intake Duration at .050”: 248
• Exhaust Duration at .050”: 254
• Lobe Separation: 110
• Requires updated distributor gear
• Firing Order: 1-5-4-2-6-3-7-8
• Made in the USA

Notes: Stock (O.E.) valve springs can NOT be used.

Comp Cams designed this Solid Roller camshaft for high performance on the street and drag strip.
