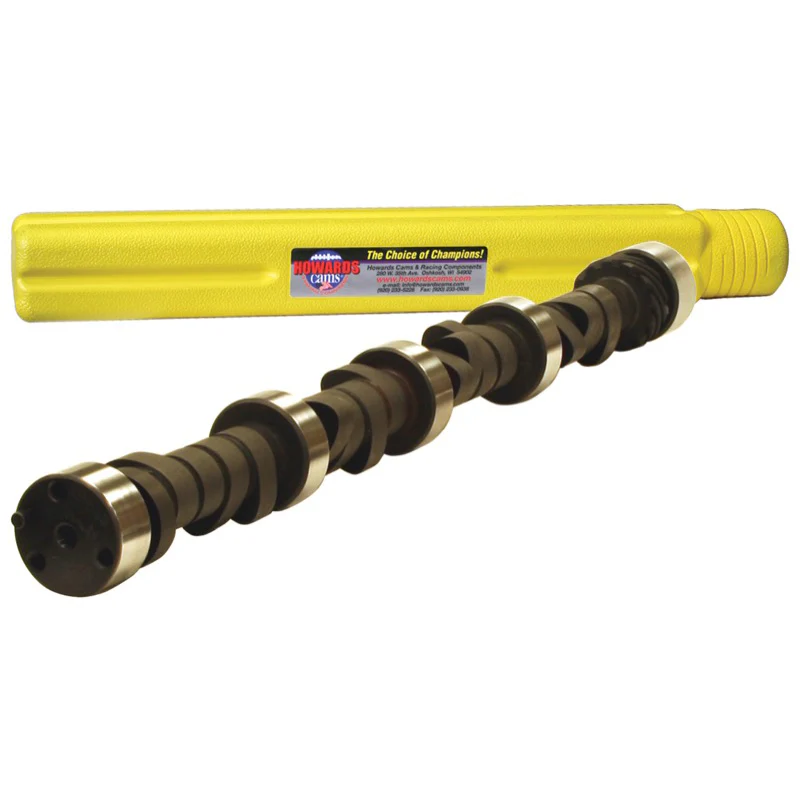

Howards Cams 124053-14 BBC 4/7 Swap Mechanical Roller Camshaft

This Howards Cams 124053-14 BBC 4/7 Swap Mechanical Roller Camshaft fits 396-502 cubic inch Mark IV Big Block Chevy engines from 1965-1996. This camshaft provides a choppy idle and good mid-range to top end horsepower, and needs 12.5:1+ compression ratio and a 5000+ stall speed torque converter come highly recommended. It is best suited for a 540+ CID BBC with Nitrous and a Race Torque Converter.

Howards Cams 124053-14 BBC 4/7 Swap Mechanical Roller Camshaft Specs:

• Designed for 540"+ Big Block Chevy engines using Nitrous
• Requires Thrust Button
• Requires upgraded distributor gear/fuel pump pushrod
• Fits Big Block Chevy 396-502 engines from 1965-1996
• Basic RPM Range: 4600 to 8200
• Valve Lift Intake: .873
• Valve Lift Exhaust: .810
• Intake Duration: 313
• Exhaust Duration: 327
• Intake Duration at .050”: 281
• Exhaust Duration at .050”: 295
• Lobe Separation: 114
• Intake Centerline: 110
• Firing Order: 1-8-7-3-6-5-4-2
• Recommended Lifter Set: 91135 RaceMax
• Recommended Premium Lifter Set: 91198 ProMax Direct Lube
• Recommended Valve Springs: 98738-A
• Made in the USA

Notes: Stock (O.E.) valve springs can NOT be used.

Howards Cams designed this Mechanical Roller camshaft for high performance on the street and drag strip.

Howards Cams - For the ultimate in performance!
