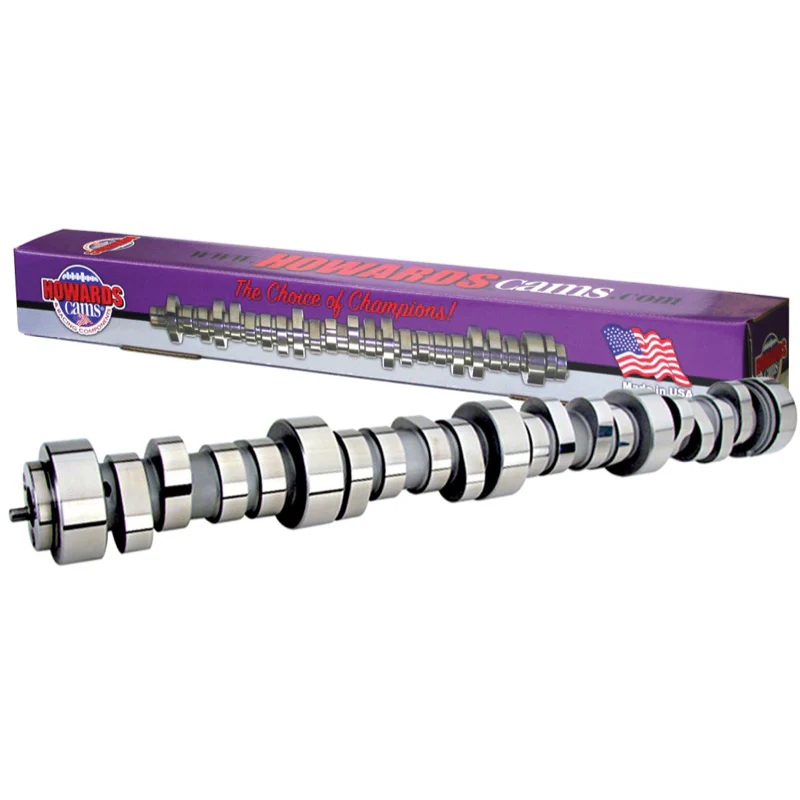

Howards Cams 196416-12 Gen IV LS Street Force 1 Hydraulic Roller Camshaft

This Howards Cams 196416-12 Hydraulic Roller Camshaft fits the Gen IV LS Single-Bolt engines from 2005 through Present without VVT. This Street Force 1 cam features a good idle, mild street performance with strong low end torque.

Howards Cams 196416-12 Gen IV LS Street Force 1 Hydraulic Roller Camshaft Specs:

•  For Gen IV LS Single-Bolt engines from 2005 through Present without VVT
• Basic RPM Range: 800 to 4000
• Valve Lift Intake: .549
• Valve Lift Exhaust: .549
• Intake Duration: 255
• Exhaust Duration: 265
• Intake Duration at .050”: 203
• Exhaust Duration at .050”: 213
• Lobe Separation: 112
• Intake Centerline: 108
• Firing Order: 1-8-7-2-6-5-4-3
• Recommended Lifter Set: 91013 Performance
• Recommended Premium Lifter Set: 91166 Retro-Fit Street
• Recommended Valve Springs: 98113
• Recommended Valve Spring, Retainer and Lock Kit: 98113-K1
• Made in the USA

Note: Requires custom programming/tuning

Howards Cams designed this Hydraulic Roller camshaft for high performance on the street and at the drag strip.

Howards Roller Cams - From mild to wild, they are the ultimate in performance!
