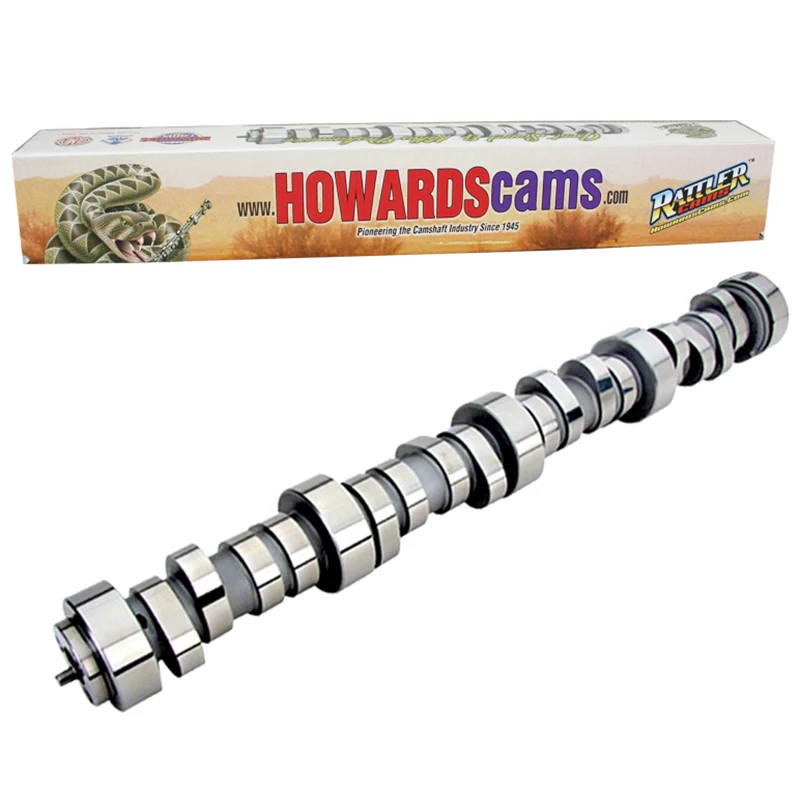

Howards Cams 198035-09 Gen III/IV LS Rattler Hydraulic Roller Camshaft
This Howards Cams 198035-09 Rattler Hydraulic Roller Camshaft fits the Gen III/IV LS engines from 1997 through Present. Howards designed this cam specifically for high performance street use with Cathedral Port Cylinder Heads, and it features a choppy idle. A 10.0:1+ compression ratio and a 2600+ stall speed torque converter are highly recommended.
Howards Cams 198035-09 Gen III/IV LS Rattler Hydraulic Roller Camshaft Specs:
- For Gen III/IV LS engines from 1997 through Present
- For use with Cathedral Port Cylinder Heads
- Basic RPM Range: 2200 to 6500
- Valve Lift Intake: .525
- Valve Lift Exhaust: .525
- Intake Duration: 275
- Exhaust Duration: 282
- Intake Duration at .050”: 226
- Exhaust Duration at .050”: 234
- Lobe Separation: 109
- Intake Centerline: 103
- Firing Order: 1-8-7-2-6-5-4-3
- Recommended Lifter Set: 91013 Performance
- Recommended Premium Lifter Set: 91166 Retro-Fit Street
- Recommended Valve Springs: 98113
- Recommended Valve Spring, Retainer and Lock Kit: 98113-K1
- Made in the USA
Howards Cams designed this hydraulic roller camshaft for high performance on the street and at the drag strip.
Howards Roller Cams - From mild to wild, they are the ultimate in performance!
